PC-580RVU

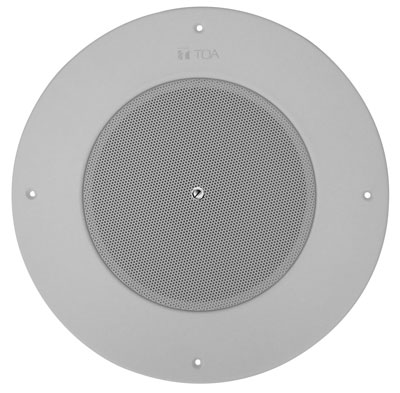

PC-580RVU Series Ceiling Mount (Mass Notification) Speaker

PC-580RVU

The PC-580RVU is designed to fill the need for a high-performance, cost effective ceiling speaker for use in Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday Paging and Background Music requirements. The PC-580RVU speaker meets UL 2572 (ULC S541, UL 1480 UUMW) (Fire Alarm Signaling) and UL 2043 (use in air handling spaces) standards when using the HY-BC580U Back Can (sold separately).




New vs Old PC-580RVU Table

QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 5W ( 70. 7 V line and 25 V line)
Rated Impedance 70.7 V line: 1 kΩ (5 W), 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) Ohms
25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)  Ohms
Sensitivity  97 dB ( 1 W, 1 m)
Dispersion (1 to 4k Hz avg.) 120° Horizontal    120° Vertical
Frequency Response 50 Hz - 16.5 kHz
Speaker Component 200 mm ( 8") Dual cone-type
Magnet Size ø80 X ø32 X 15 mm (3.15" X 1.26" X 0.59")
Magnet Weight 315 g (11.11 oz)
Flux Density 11,300 gauss
Volume Control Potentiometer screw driver type, Wire wound 50 Ω
Operating Temperature -10 ·c to +50 ·c (14 'F to 122 'F)
Dimensions of Fixing Hole ø228.6±3 mm ( 9" ±0.12")
Speaker Mounting Method Mounting screw M5 X 38
Connection Push wire connection (Bridging terminal-2 branch type)
Applicable Cable Solid wire: ø0.8 - ø1.6 (AWG 20-12)
DC Blocking Capacitor 33 µF
Grill Diameter 8.5"
Finish Frame: Steel plate, white, paint
Grille: Steel net, white, paint
Dimensions ø324 x 103 (D) mm (12.76" x 4.05")
Weight 1.65 kg (3.64 lbs)
Option

ULC S541, UL 1480 UUMW and UL 2043 when used with HY-BC580U
Back can (sold separately)
(for other installation): BB-580
Mount rail: Q-HY-TB2
