PC-580S

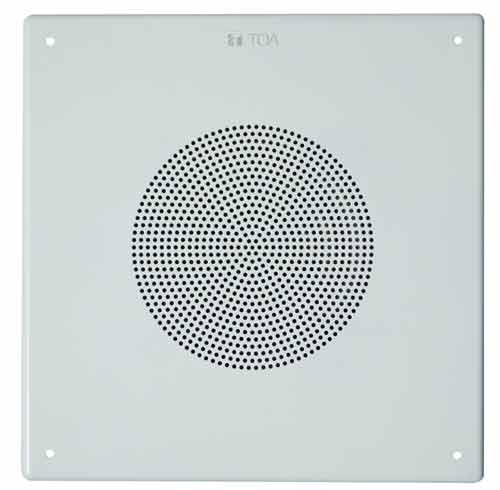

PC-580S Series Square Ceiling Speaker

PC-580S

TOA’s PC-580S is designed to fill the need for a high-performance, cost effective ceiling speaker for use in general paging and back ground music requirements. The PC-580S can easily be installed into retrofit projects.




New vs Old PC-580S Table

QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 5W ( 70. 7 V line and 25 V line)
Rated Impedance 70.7 V line: 1 kΩ (5 Wl, 2 kΩ (2.5 W), 5 kΩ (1 W), 8.3 kΩ (0.6 W), 16.6 kΩ (0.3 W) Ohms
25 V line: 125 Ω (5 W), 250 Ω (2.5 W), 625 Ω (1 W), 1 kΩ (0.6 W), 2 kΩ (0.3 W)  Ohms
Sensitivity 97 dB ( 1 W, 1 m)
Frequency Response 50 Hz - 16.5 kHz
Speaker Component 200 mm ( 8") Dual cone-type
Magnet Size ø80 X ø32 X 15 mm (3.15" X 1.26" X 0.59")
Magnet Weight 315 g (11.11 oz.)
Flux Density 11,300 gauss
Operating Temperature -10 ·c to +50 ·c (14 'F to 122 'F
Dimensions of Fixing Hole ø228.6±3 mm ( 9" ±0.12")
Speaker Mounting Method Mounting screw M5 X 38
Applicable Cable Solid wire: ¢0.8 - ¢1.6 (AWG 20 - 12)
Connection Push wire connection ( Bridging terminal-2 branch type)
Finish Panel: Steel plate, white, paint
Grille: Steel plate, white
Dimensions 318 X 318 X 87 (D) mm (12.52" X 12.52" X 3.43")
Weight 1.90 kg (4.19 lbs)
Option Flush mount back box: Q-BB-580S
Surface mount back box: Q-BB-580W
