Q-PJ-304BK

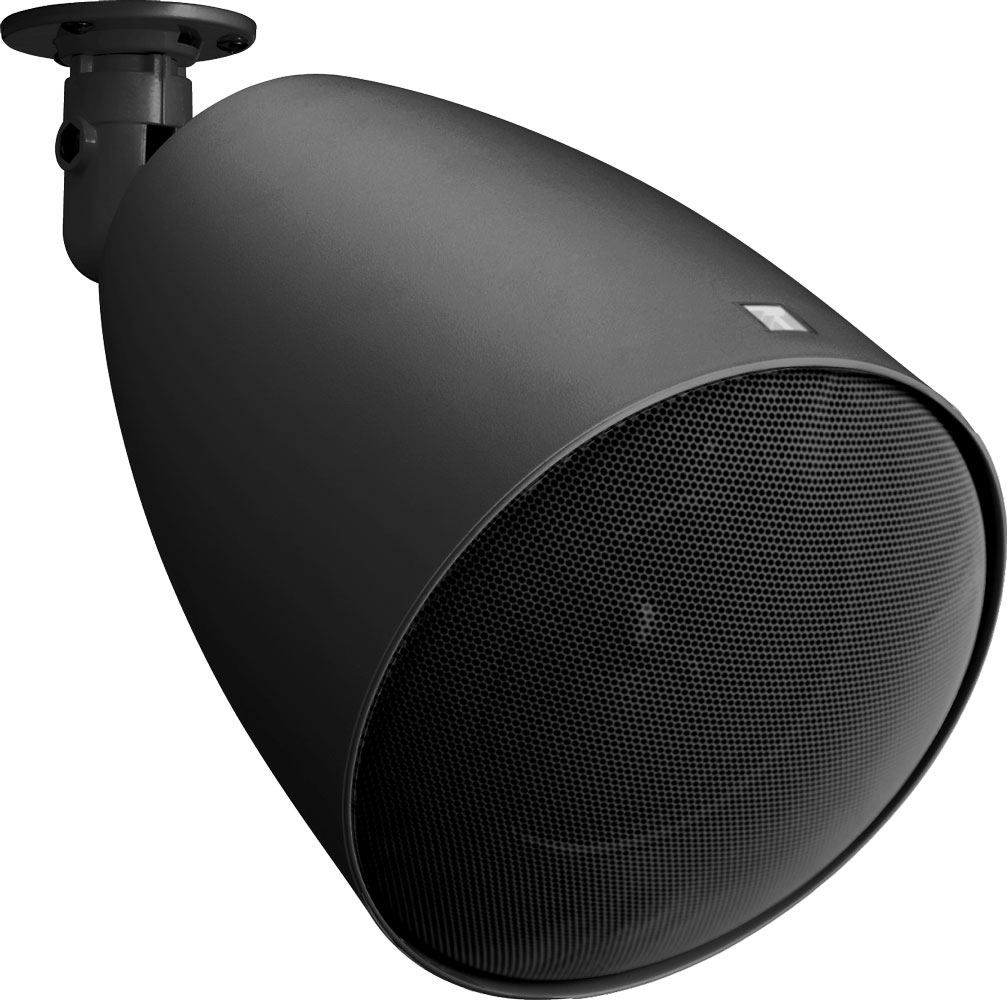

Q-PJ-304BK Projection Public Address Speaker

Q-PJ-304BK

The Q-PJ-304BK is a black projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The Q-PJ-304BK is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.



QTY: Add to Request for quote Request for quote

Specifications:

Enclosure Bass-reflex type
Rated Input 30W (100V, 70V line, 8 Ω)
Rated Impedance 100V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15W), 500 Ω (10W) 1 kΩ (5 W)
8 Ω
Dispersion (1 to 4k Hz avg.) Horizontal 90°  x  Vertical 90°
Sensitivity 91 dB (1 W, 1 m) (500 Hz - 5 KHz, pink noise)
Frequency Response 70 Hz - 20 kHz (peak -20 dB)
Speaker Component 12 cm (5") cone-type + balanced dome-tweeter
Speaker Cord 2-core cabtyre cord 5m (16.4 ft)
Finish Enclosure: HIPS resin, black
Grille: Surface-treated steel plate net, black, paint
Dimensions ⌀186 x 369 (H) mm (⌀7.32" x 14.33") (unit only)
Weight 2.1 kg (4.63 lb) (unit only)
Accessory Swivel bracket...1, Speaker mounting screw (4 x 16)...3
