AT-025

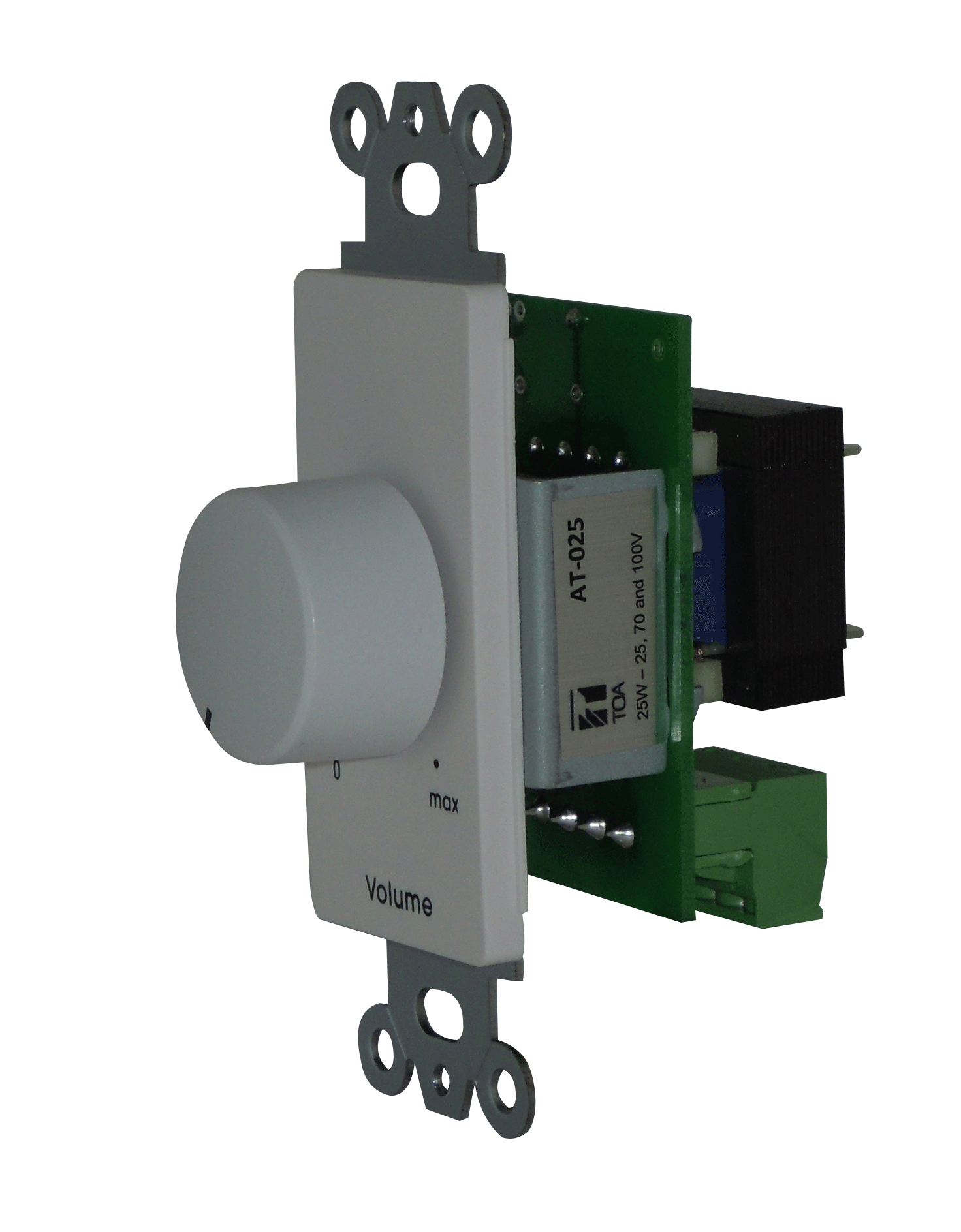

AT-025 Volume Control Attenuator

AT-025

AT-025 volume control attenuator provides precise level adjustment of single or multiple speaker lines. Available in 25W with a Decora-style wall plate.

QTY: Add to Request for quote Request for quote

Specifications:

Input Capacity 25W
Attenuation 13 steps (0dB, -3dB, -6dB, -9dB, -12dB, -15dB, -18dB, -21dB, -24dB, -27dB, -30dB, -33dB, OFF)
Wire Capacity 14 gauge
Finish White plate & sub-plate / Decora-style
Dimensions Plate width: 69.85 mm (2.75")
Plate Height:114.30 mm (4.5")
44.45 (D) x 63.5 (H) x 47.62 (W) mm (1.75" x 2.5" x 1.875")
