AT-100EMG

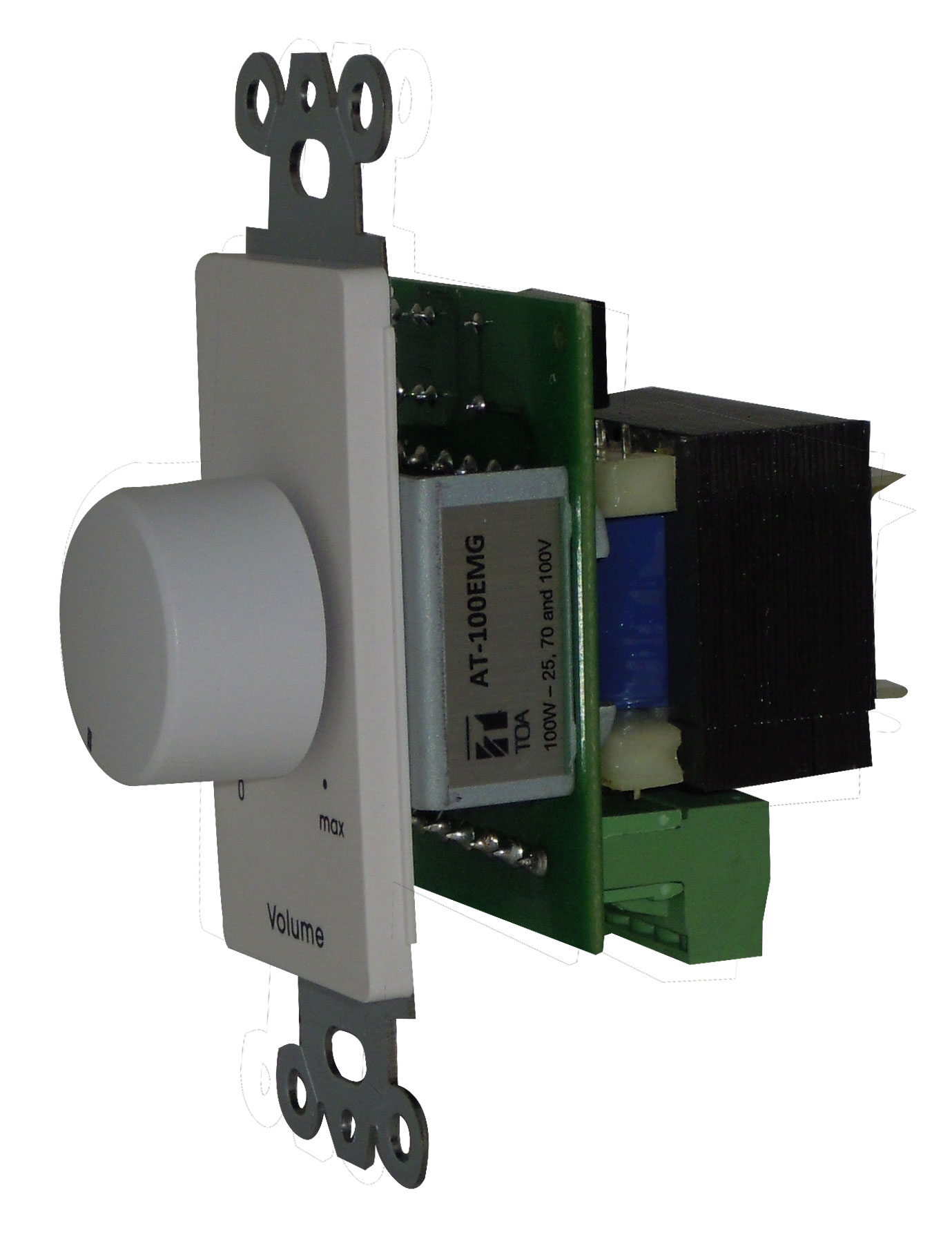

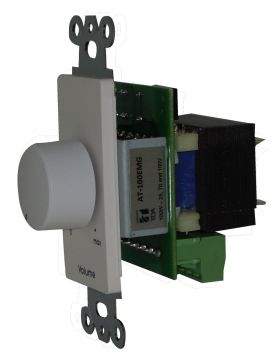

AT-100EMG Volume Control Attenuator

AT-100EMG

AT-100EMG volume control attenuator provides precise level adjustment of single or multiple speaker lines. Available in 100W with a Decora-style wall plate. AT-100EMG is equipped 3 with a 24 VDC @ 15mA relay for applications that require emergency and paging signals to bypass/override the attenuator.

QTY: Add to Request for quote Request for quote

Specifications:

Input Capacity 100W
Attenuation 13 steps (0dB, -3dB, -6dB, -9dB, -12dB, -15dB, -18dB, -21dB, -24dB, -27dB, -30dB, -33dB, OFF)
Wire Capacity 14 gauge
Priority Relay 24 VDC @ 15mA
Finish White plate & sub-plate / Decora-style
Dimensions Plate width: 69.85 mm (2.75")
Plate Height:114.30 mm (4.5")
53.97 (D) x 63.5 (H) x 47.62 (W) mm (2.125" x 2.5" x 1.875")
