AT-10K

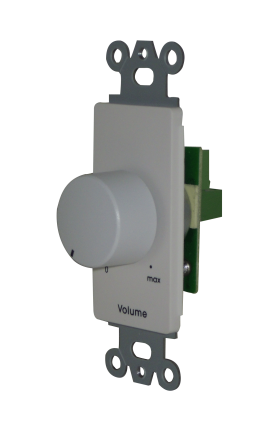

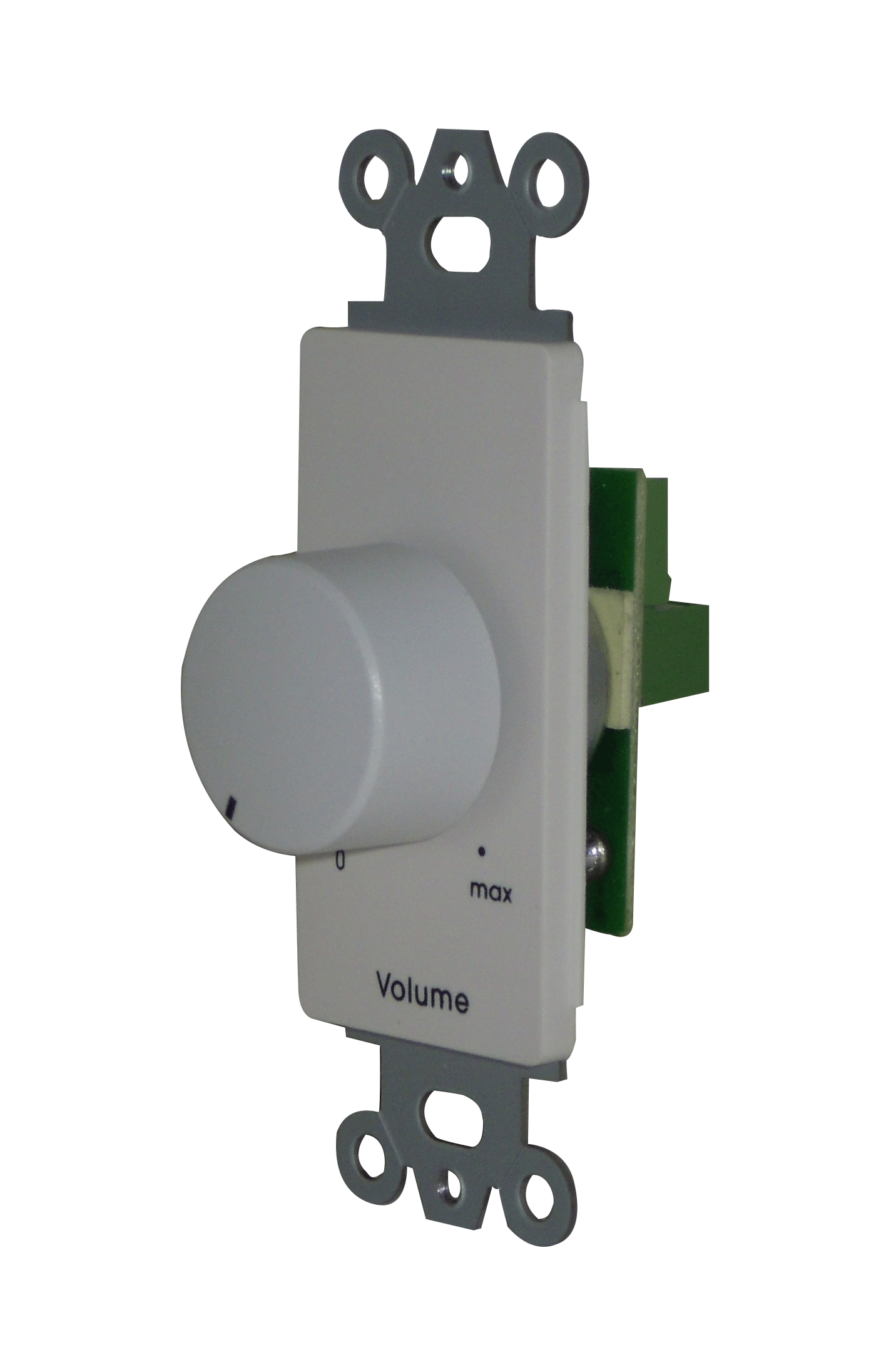

AT-10K Volume Control Attenuator

AT-10K

AT-10K volume control attenuator provides precise level adjustment of single or multiple speaker lines. Available in 100W with a Decora-style wall plate. AT-10K is a 10kΩ linear taper control for single-point remote level adjustment of voltage controlled amplifiers such as TOA's M-900MK2, A-900MK2, M-9000M2, A-9000M2, A-700, BG-2000, BA-200, AV-20D series mixer/amplifiers.

QTY: Add to Request for quote Request for quote

Specifications:

Attenuation Continuous 10 kΩ
Wire Capacity 14 gauge
Finish White plate & sub-plate / Decora-style
Dimensions Plate width: 69.85 mm (2.75")
Plate Height:114.30 mm (4.5")
31.75 (D) x 25.4 (H) x 44.45 (W) mm (1.25" x 1.75" x 1.0")
