SR-C8SWP

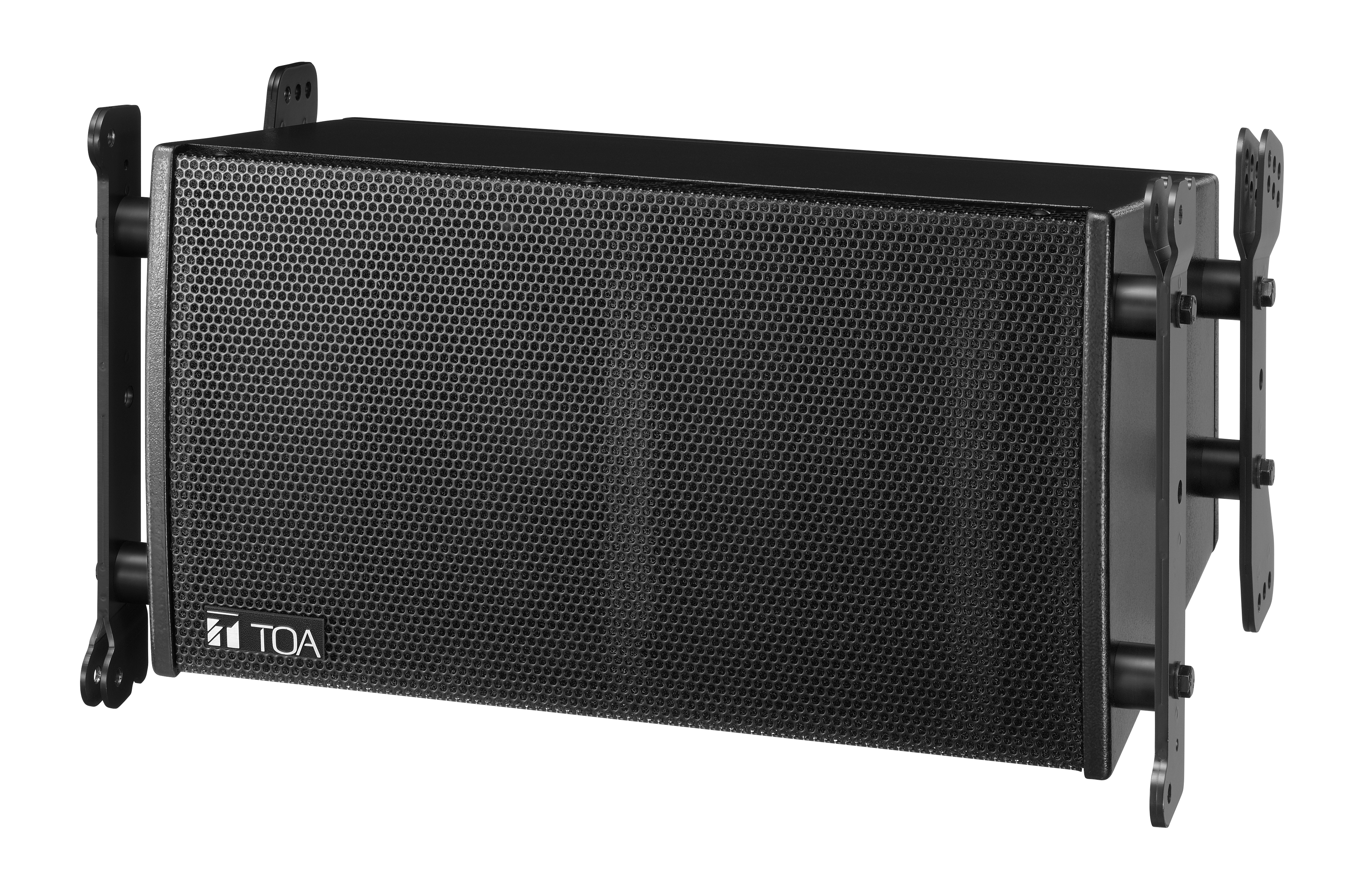

SR-C8SWP Line Array Speaker

SR-C8SWP

The SR-C8SWP is a 2-way Line Array Speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. It can be converted into the bi-amplifier drive system by changing the internal connection.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 360 W (single-amp mode)
Low: 360 W, High: 180 W (bi-amp mode)
Dispersion (1 to 4k Hz avg.)            140° Horizontal x 40° Vertical (single box - 0°)
Rated Impedance 16 Ω (single-amp mode)
Low: 16 Ω, High: 16 Ω (bi-amp mode)
Sensitivity 98 dB (1 W, 1 m) (single-amp mode)
Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
Frequency Response 65 - 20,000 Hz (when driven with the optional DSP processor)
Crossover Frequency 1,600 Hz (when driven with the optional DSP processor)
Directivity Angle Horizontal: 110゜, Vertical: 15゜
Speaker Component Low frequency: 20 cm (8") cone-type
High frequency: Wave front control horn 110゜ (horizontal) × 15゜ (vertical)
+ compression driver × 2
Connected Cable Direct cable withdrawal from internal speaker: ⌀8.6 mm (⌀0.34") conductor corss section: 1.25m㎡ (0.05"), 4-core cable, 3m (9.84 ft)
Water Protection IPX4
Finish Enclosure: Plywood, black, urethane paint
Front grille: Punched steel plate, black, paint
Dimensions 526.6 (W) × 293 (H) × 294 (D) mm (20.73 × 11.54" × 11.57")
Weight 16 kg (35.27 lb)
Accessory M8 connection bolt …4
Option Rigging frame: SR-RF8WP
DSP processor
