Q-N8050WP

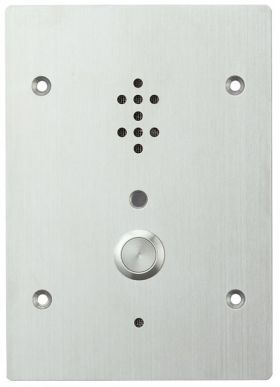

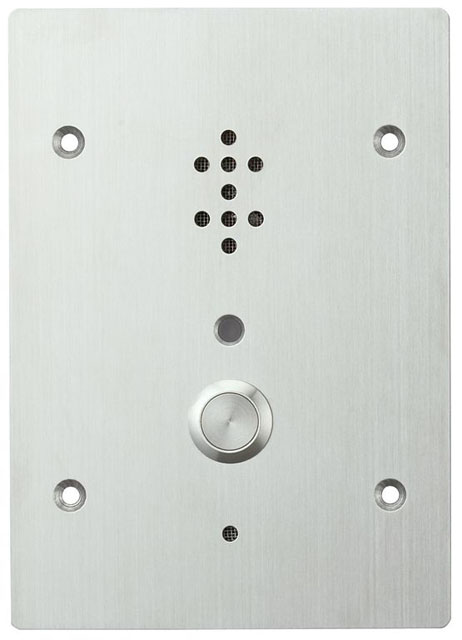

Q-N8050WP Door Station

Q-N8050WP

Designed to connect to the IP Intercom Exchange, the Q-N-8050WP / Q-N-8640WP door station features high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is full conformity with IP54 water-proof and dust-proof standards. The operating Temperature range is -10°C to 50°C. As provided with guard nets inside to cover over the openings of microphone and speaker, the Q-N-8050WP / Q-N-8640WP can be installed free from care in a public space.



QTY: Add to Request for quote Request for quote

Specifications:

* 0 dB = 1 V

Power Source 48 V DC (Supplied from the IP Intercom exchange (option))
Power Consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method Non-polar one pair straned wire system
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level Under 0 dB*
Speech Method Hands-free conversation
Audio Frequency Range 300 - 7,000 Hz
Transmission Range Max. 1500 m (⌀0.65 mm. Loop resistance 170Ω)
Hands-free Speaker: 3.5cm cone-type, 1W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Contact Output Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA, one shot: can be set from 1 to 9 s, scre terminal (polarized)
Line Connecting Terminal 2 wire, scre terminal (non-polar)
Settting Method Flush-mount / Surface-mount
Operating Temperature -10° to +50°C (14° to 122°F)
Operating Humidity Under 90% RH (no condensation)
Housing Protection BS EN62262: 2002: IK02 equivalent
Dust / Water Protection IP 54 (note that panel edges must be sealed at installation.)
Resistance to Environment Pass our gas corrosion test and neutral salt spray test
Finish Plate: Stainless steel (SUS304), hairline
Call button: Metal
Circuit board: Silicone sealing agent-coated board
Dimensions 115 (W) x 162 (H) x 54 (D) mm (4.53" x 6.38" x 2.13")
Weight 680g (1.5 lbs)
Accessory Box mounting screw (No. 6 - 32 UNC x 18)...4, Box mounting screw (M4 x 25)...4
Applicable Box (Option) For flush mount: 3-gang electrical box or Back Box YC-150
For wll mount: Wall-mount Box YS-13A
