Q-RS180BZ

Q-RS180BZ Substation (Emergency use)

Q-RS180BZ

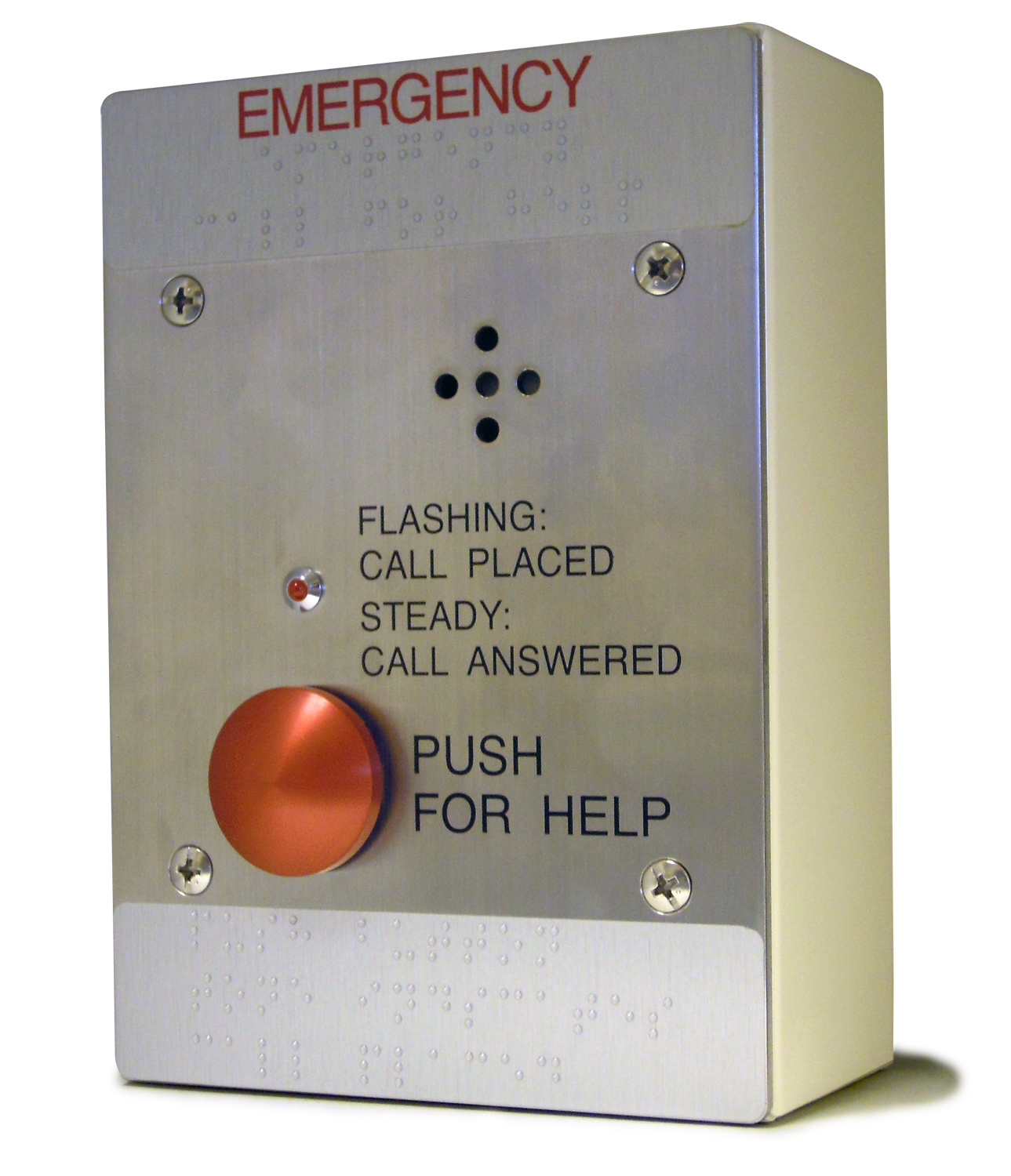

The Q-RS180BZ is a substation of the N-8000 network intercom system designed for Rescue Assistance applications and ADA compliance. It has Emergency and Braille signage, a red mushroom call button, water-resistant buzzer, LED indicator and control output. This substation can be connected with N-8000RS or N-8010RS with a 2-core shielded cable.



QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 1 W
Rated Impedance 625 Ω (1 W / 25 V)
Internal Speaker 4 cm cone-type
Buzzer Water proof type
Control Output Open collector, Withstand voltage: 30 VDC, Control current: 30 mA (The open collector output and the buzzer are kept turned on until the conversation is finished after the call button is pressed.)
Wiring Two-core shielded cable
Transmission Range

0.5 km (546 yd) / ⌀0.5 mm (AWG24)
0.8 km (874 yd) / ⌀0.65 mm (AWG22)
1.3 km (1421 yd) / ⌀0.9 mm (AWG19)
Operating Temperature -10 °C to +50 °C (Temperature range not to freeze the speaker and switch)
Finish

Panel: Stainless steel, hairline
Braille: "EMERGENCY PUSH FOR HELP" "FLASHING: CALL PLACED STEADY: CALL ANSWERED"
Call Button: Metal (RED mushroom)
Printed circuit board: Weather-resistant coating
Dimensions 115 (W) x 162 (H) x 66.8 (D) mm (4.53" x 6.38" x 2.63")
Weight 700g (1.54 lbs)
Accessory Box mounting screw (No. 6-32UNC x 8...4, Box mounting screw (M4 x 25...4)
Applicable Box 3-gang electrical box: YC-150 or YS-13A (option)
