Q-N8640DS

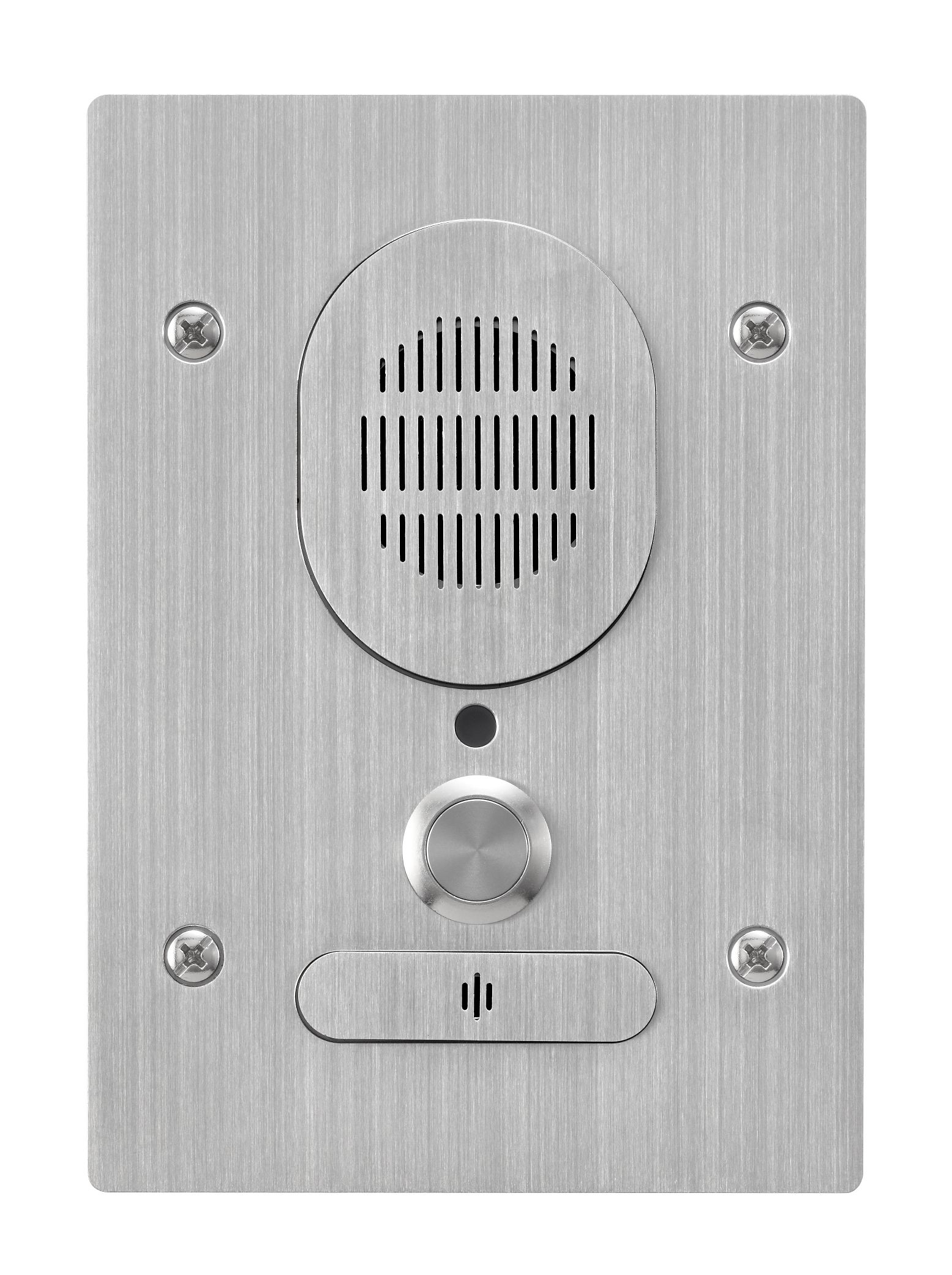

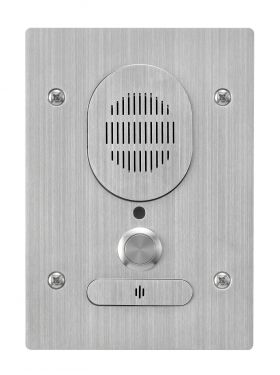

Q-N8640DS IP Door Station (weather-resistant)

Q-N8640DS 78600

The Q-N8640DS is an outdoor weather resistant, IP door station employing packet audio technology. Connecting the Q-N8640DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the Q-N8640DS and the intercom station connected to the IP Intercom Exchange, or between the Q-N8640DSB and an IP multifunctional master station. Besides, the Q-N8640DS can be used in conjunction with the Multi Interface units through a network. The Q-N8640DS is equipped with 1 channel of control input, 5 channels of control outputs (including 1 channel of relay control output), and speaker output, thereby enabling connections of external equipment such as a sensor, indicator, and external speaker. Station includes boot.



QTY: Add to Request for quote Request for quote
Specification
Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption 5 W (max.)
Speech Method Hands-free conversation
Audio Frequency Range 300 Hz - 7 kHz
Control Input 1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends
Control output Open collector output, 4 channels, withstand voltage: 30 V DC,
control current: Max. 50 mA (4 output 1COMMON), unterminated ends
Relay contact output, 1 channel, withstand voltage: 30 V DC,
control current: Max. 500 mA, unterminated ends
External Speaker Terminal 0.5 W, 8 Ω
Network Section
Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio Packet Transmission System Unicast, Multicast
Voice Packet Loss Recovery Silence insertion
Audio Delay Time 80 ms, 320 ms (controllable on the software)

Dust/Water Protection IP65 (Note that panel edges must be sealed at installation.)
Finish Plate: Stainless steel (SUS304), hairline
Call button: Metal with black silicone boot
Dimensions 115 (W) × 162 (H) × 58.5 (D) mm (4.53" × 6.38" × 2.3")
Weight 780 g (1.72 lb)
Optional Accessories For wall mount: Wall-mount Box YS-13A (option)
For flush mount: 3-gang electrical box or Back Box YC-150 (option)
AC Adapter: AD-1215P
