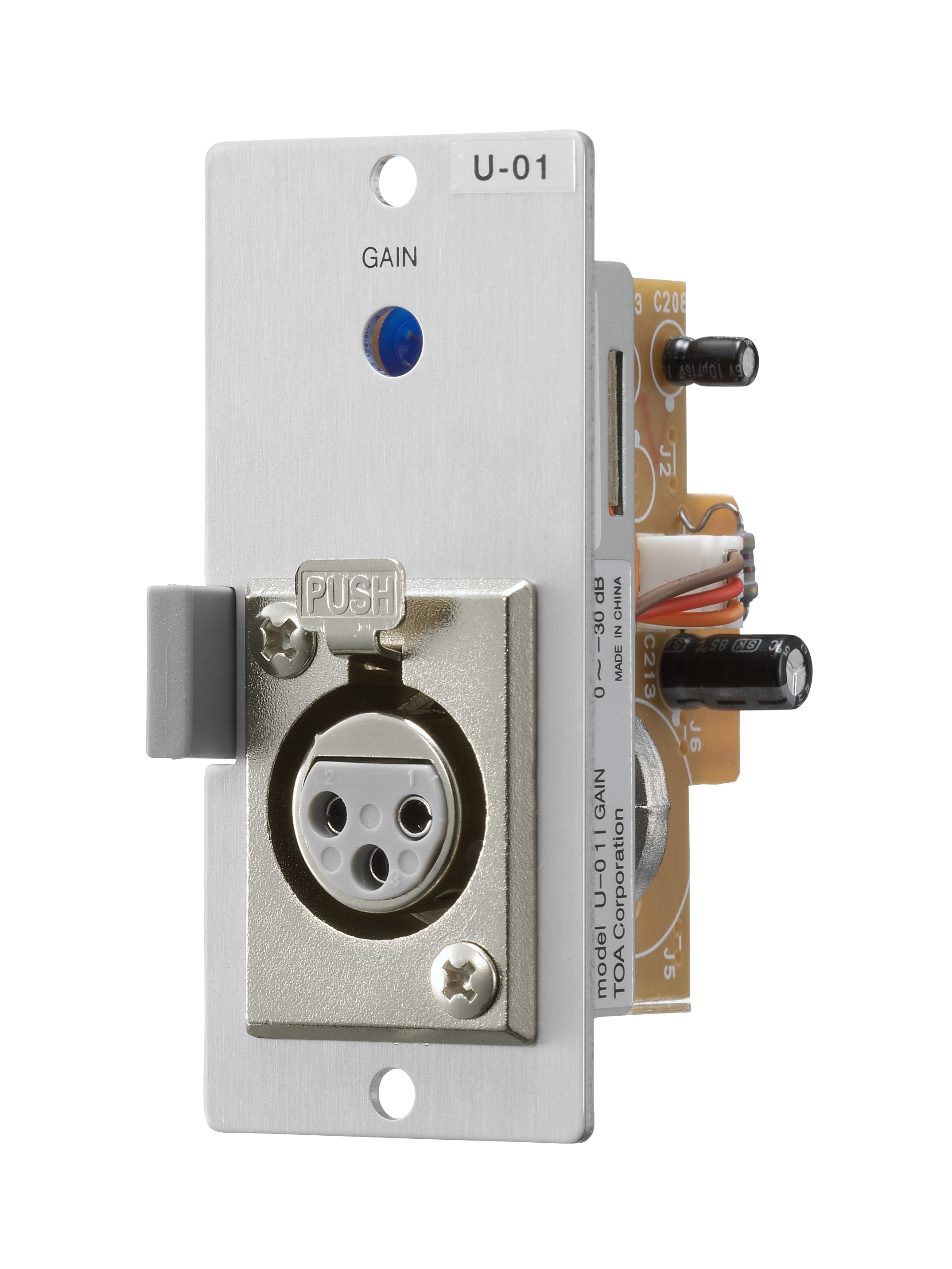

U-01F Unbalanced Line Input

U-01F

The U-01F is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with female XLR type connector, and gain control.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Power Source 24 V DC (supplied from the main frame)
Current Consumption 4 mA
Input Sensitivity -20 dB* (rated output: -20 dB*), adjustable: -20 to +10 dB*
Input Impedance 220 kΩ, unbalanced
Frequency Response 20 Hz - 20 kHz ±1.0 dB
Distortion 0.05 % or less (1 kHz, output: 0 dB*)
Noise Level -106 dB* (20 Hz - 20 kHz BPF)
Gain -30 - 0 dB
Connector Female XLR connector (XLR-3-31 equivalent)
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 75 g (0.17 lb)
