IR-801AF  US

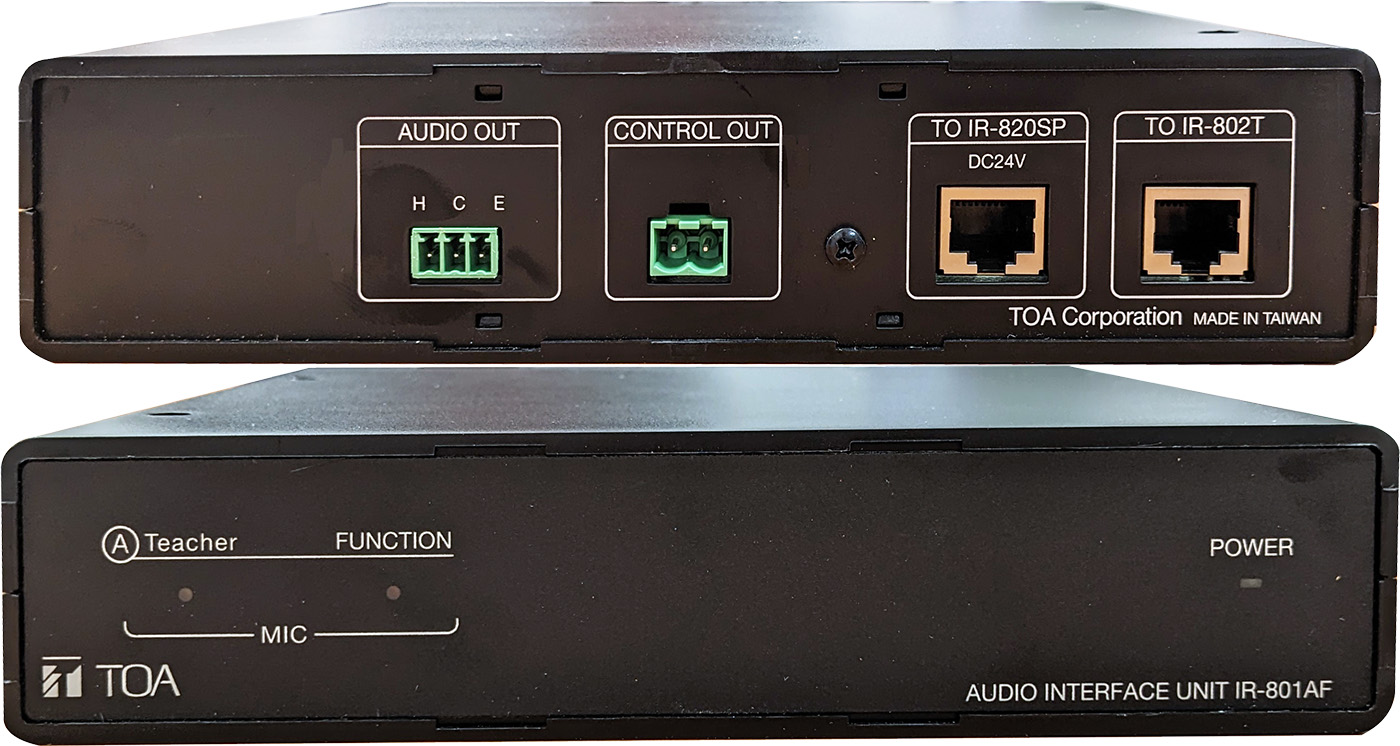

IR-801AF US Audio Interface Unit

IR-801AF US

The IR-801AF US is an Audio Interface Unit designed for use in a school classroom with the legacyIR-310M Ypush button Infrared Wireless Microphone. It connects between the IR-802T Infrared Wireless Tuner and IR-820SP Infrared Speaker by a single CAT-5 UTP cable. It has an analogue audio output and a contact output. Permits connecting with external equipment, like a paging system, strobe light or message repeater and can allow the function push button to act as a panic callback button to the office. Not for use with IR-310M Y PQD00.

IR Classroom Brochure IR Classroom Brochure

This product is electronically distributed.

Specifications:

* 0 dB = 1 V

Power Source 24 V DC (Supplied from IR-802T
Infrared Frequency Channel Channel A: 3.100 MHz
Contact Output

Relay contact output, contact capacity: 30 V DC/2 - 500 mA,

removable terminal block (2 pins)

Audio Output

-20dB*, electronically-balanced, removable terminal block (3 pins)

Operating Temperature -10°C to +50°C (14°F to 122°F)
Operating Humidity  90% RH or less (no condensation)
Finish Control section: ABS resin, black
 Dimensions 210 (W) x 44 (H) x 181 (D) mm (8.27" x 1.73" x 7.13")
Weight 560g (1.23 lbs)

Optional product
MB-WT3 Rack Mount Kit
