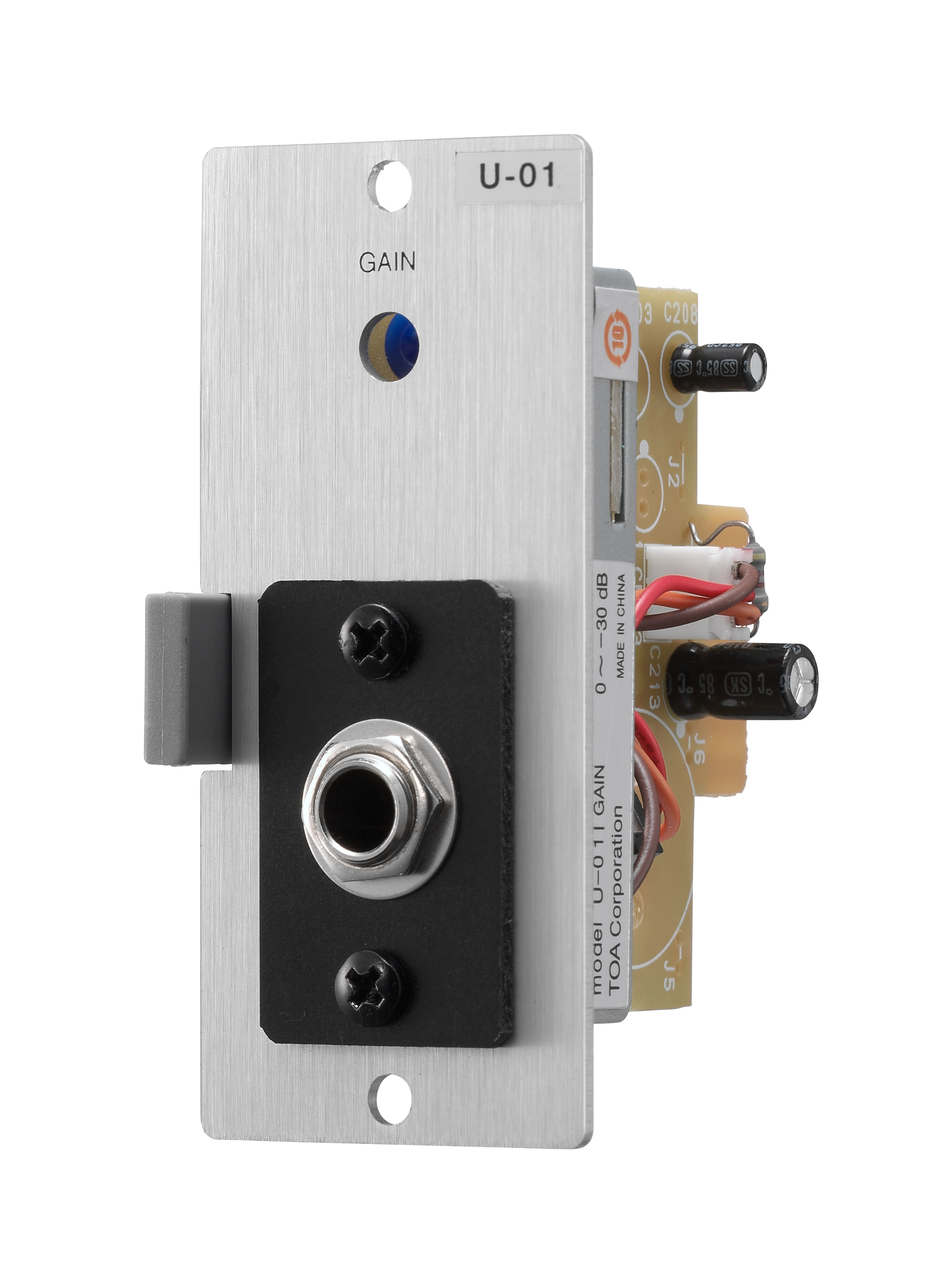

U-01P Unbalanced Line Input

U-01P

The U-01P is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with φ6.3 (1/4") phone jack connector, and gain control.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Power Source 24 V DC (supplied from the main frame)
Current Consumption 4 mA
Input Sensitivity -20 dB* (rated output: -20 dB*), adjustable: -20 to +10 dB*
Input Impedance 220 kΩ, unbalanced
Frequency Response 20 Hz - 20 kHz ±1.0 dB
Distortion 0.05 % or less (1 kHz, output: 0 dB*)
Noise Level -106 dB* (20 Hz - 20 kHz BPF)
Gain -30 - 0 dB
Connector φ6.3 (1/4) Phone jack (3P)"
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 75 g (0.17 lb)
