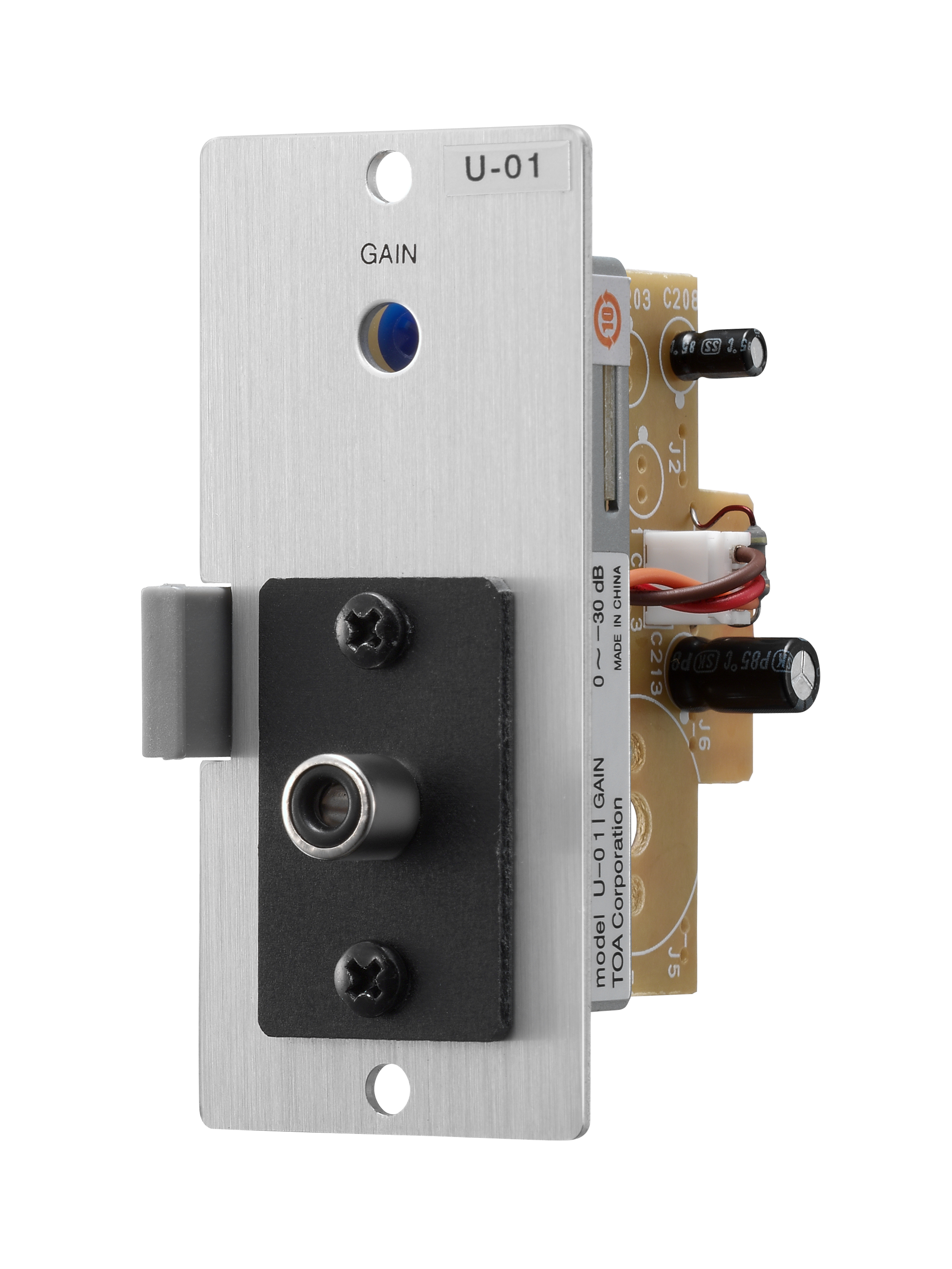

U-01R Unbalanced Line Input

U-01R

The U-01R is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with RCA pin jack connector, and gain control.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Power Source 24 V DC (supplied from the main frame)
Current Consumption 4 mA
Input Sensitivity -20 dB* (rated output: -20 dB*), adjustable: -20 to +10 dB*
Input Impedance 220 kΩ, unbalanced
Frequency Response 20 Hz - 20 kHz ±1.0 dB
Distortion 0.05 % or less (1 kHz, output: 0 dB*)
Noise Level -106 dB* (20 Hz - 20 kHz BPF)
Gain -30 - 0 dB
Connector RCA pin jack (1P)
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 75 g (0.17 lb)
