Q-EM-77

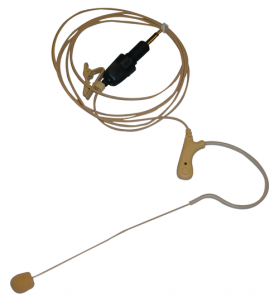

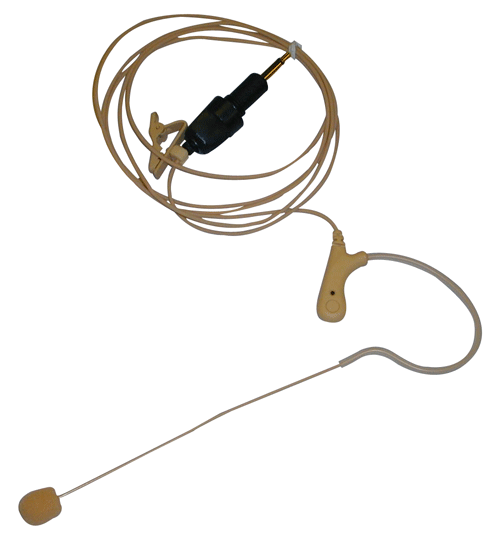

Q-EM-77 Single Ear Microphone

Q-EM-77

The EM-77 and Q-EM-77 are high quality single over the ear microphones consisting of an electret transducer capsule exhibiting an omni-directional characteristic.

Because of it's lightweight construction, it allows the user complete freedom of movement making it ideal for theatre, conference and education use.

Q-EM-77: Compatible with TOA’s 5000 Series UHF Microphone System. This over the ear microphone is available in beige and features a 3.5mm jack plug.



QTY: Add to Request for quote Request for quote

Specifications:

Polar Pattern Omnidirectional
Transducer Type Electret condenser
Operating Voltage 1.5-10 volts min/max
Sensitivity 5mV/Pa +/-3dB
Frequency Response 20Hz - 20KHz ±3dB
Colour Beige
Connector 3.5mm Connector
