S5.3-HD-H2USQ

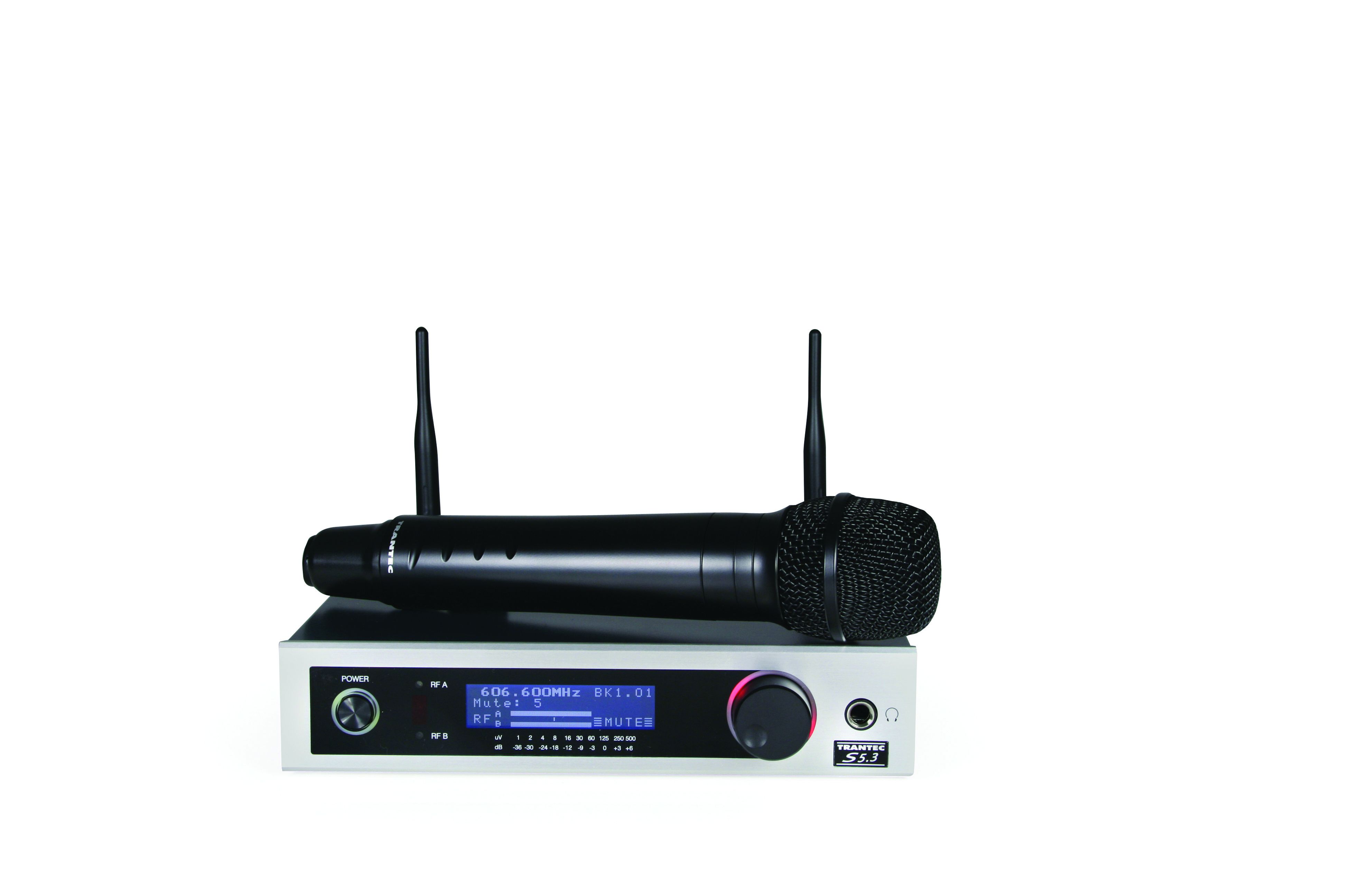

S5.3-HD Trantec UHF Handheld Dynamic Wireless Microphone Kit

S5.3-HD-H2

25 years after pioneering the first readily available radio mics, Trantec's foresight and imagination has again taken wireless to a whole new level with their groundbreaking S5 Series. Based upon the award winning S6000, widely used in Theater and broadcast, the S5 Series promises a powerful set of features combined with an exceptional performance/cost ratio. For venues of any size, we suggest you check out the specifications of this remarkable system.

The S5.3, one of our latest multi-channel UHF products, is the little brother of the successful S5.5 system. It will enable you to run up to 12 channels simultaneously at a price you will find hard to match.

Frequency Band Selection: H: 576-607 MHz, UHF



Note: Rack mounting kit not included.
MB-15B-BK – for mounting a single receiver;  MB-15B-J - for mounting 2 receivers side by side

QTY: Add to Request for quote Request for quote

Specifications

S5.3-RX - Receiver

Power Consumption 300 mA (13 V DC)
Diversity System Space diversity (true diversity)
Audio Output Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
Antenna Phantom Power 9 V DC, 30 mA (max) (Available to turn off phantom power)
Receiving Sensitivity 0 dB μV or less (12 dB SINAD)
Squelch Sensitivity 6 - 36 dB μV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator LCD, Power lamp, Mute lamp, ANT A/B lamp
S/N Ratio 110 dB or more (A-weight)
Harmonic Distortion 1% or less (typical)
Frequency Response 50 Hz - 20 kHz, ±3 dB
Function Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
Dimensions 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
Weight

1.3kg (2.87lb)



S5.3-HDX - Handheld Microphone (Dynamic)

RF Carrier Power Less than 50mW(Factory preset 10mW ERP)
Maximum Input Level 146dB SPL
(microphone sensitivity: Gain "0")
Audio Frequency Response 60 Hz - 20 kHz
Dynamic Range 110 dB or more (with S5.5-RX)
Battery LR6 (Single AA)
Battery Life 10 hours (Alkaline)
Indicator LCD display, Power lamp
Function Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB)
Dimensions Ø50 x 247.9 mm (Ø1.97" x 9.76")
Weight 380g (0.84lb) (with battery)

Note: Rack mounting kit not included.
MB-15B-BK – for mounting a single receiver;  MB-15B-J - for mounting 2 receivers side by side
