S5.3-BTX-H2 Q

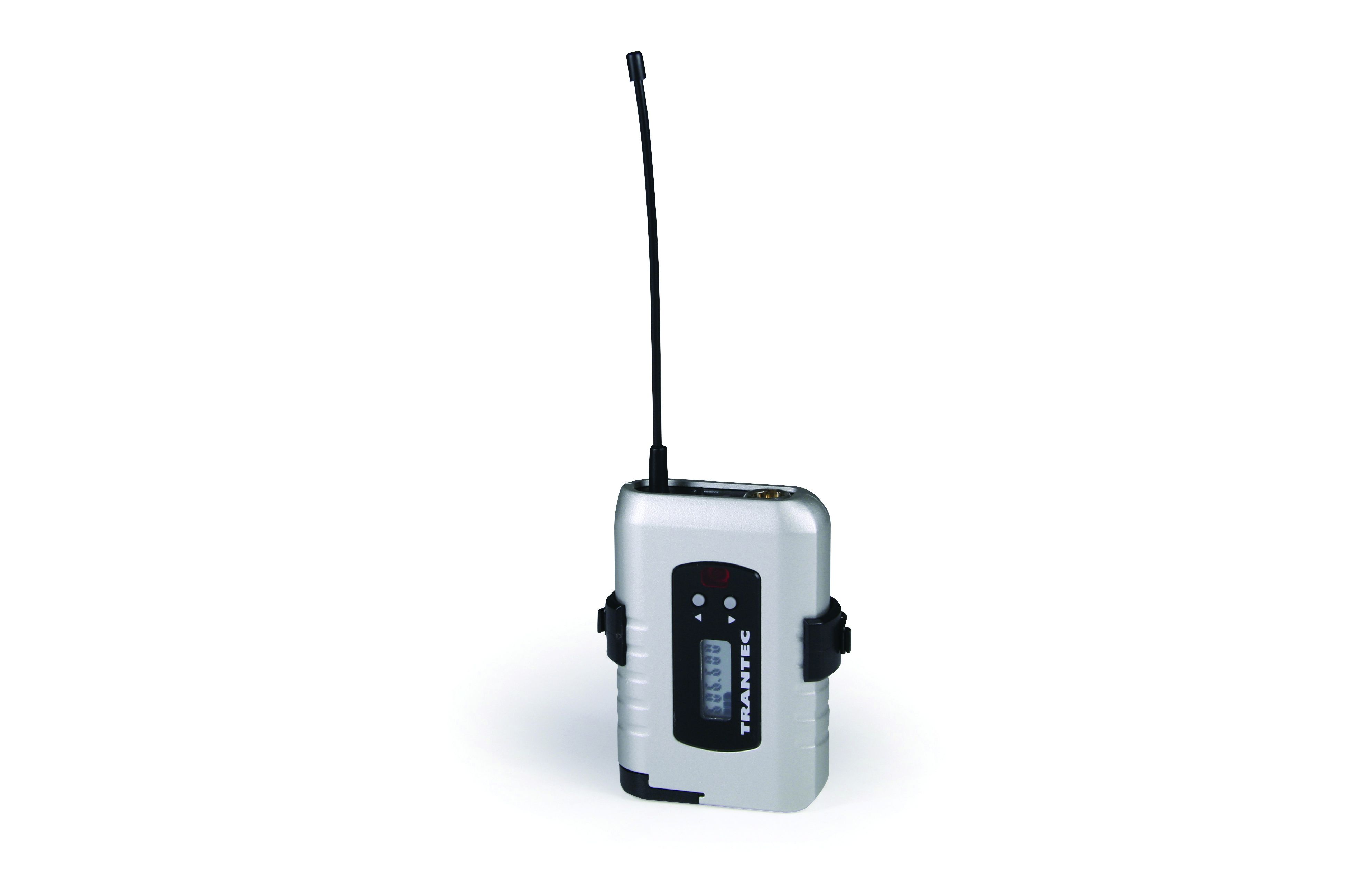

S5.3-BTX Trantec UHF Wireless Beltpack Transmitter

S5.3-BTX-H2 Q

25 years after pioneering the first readily available radio mics, Trantec's foresight and imagination has again taken wireless to a whole new level with their groundbreaking S5 Series. Based upon the award winning S6000, widely used in Theater and broadcast, the S5 Series promises a powerful set of features combined with an exceptional performance/cost ratio. For venues of any size, we suggest you check out the specifications of this remarkable system.

The S5.3, one of our latest multi-channel UHF products, is the little brother of the successful S5.5 system. It will enable you to run up to 12 channels simultaneously at a price you will find hard to match.

NOTE: Microphones sold separately.

Frequency Band Selection: H: 576 - 606 MHz, UHF



Specifications

RF Carrier Power Less than 50mW (Factory preset 10mW ERP)
Modulation System PLL synthesizer
Maximum Input Level 120 dB SPL (microphone sensitivity: Gain "0")
Audio Input Connector TA-4 (Mini-XLR 4 pins)
Battery LR6 (Single AA)
Battery Life 10 hours (Alkaline)
Indicator LCD display, Power lamp
Function Infra-red Link Port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-9; 20dB)
Dimensions 55 (W) x 80 (H) x 22 (D) mm (2.17" x 3.15" x 0.87")
Weight 140g (0.31lb) (with battery)

NOTE: Microphones sold separately.
