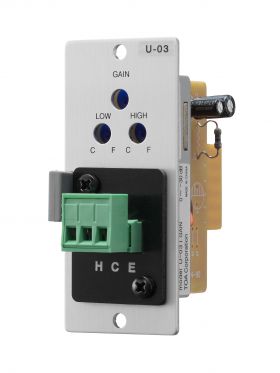

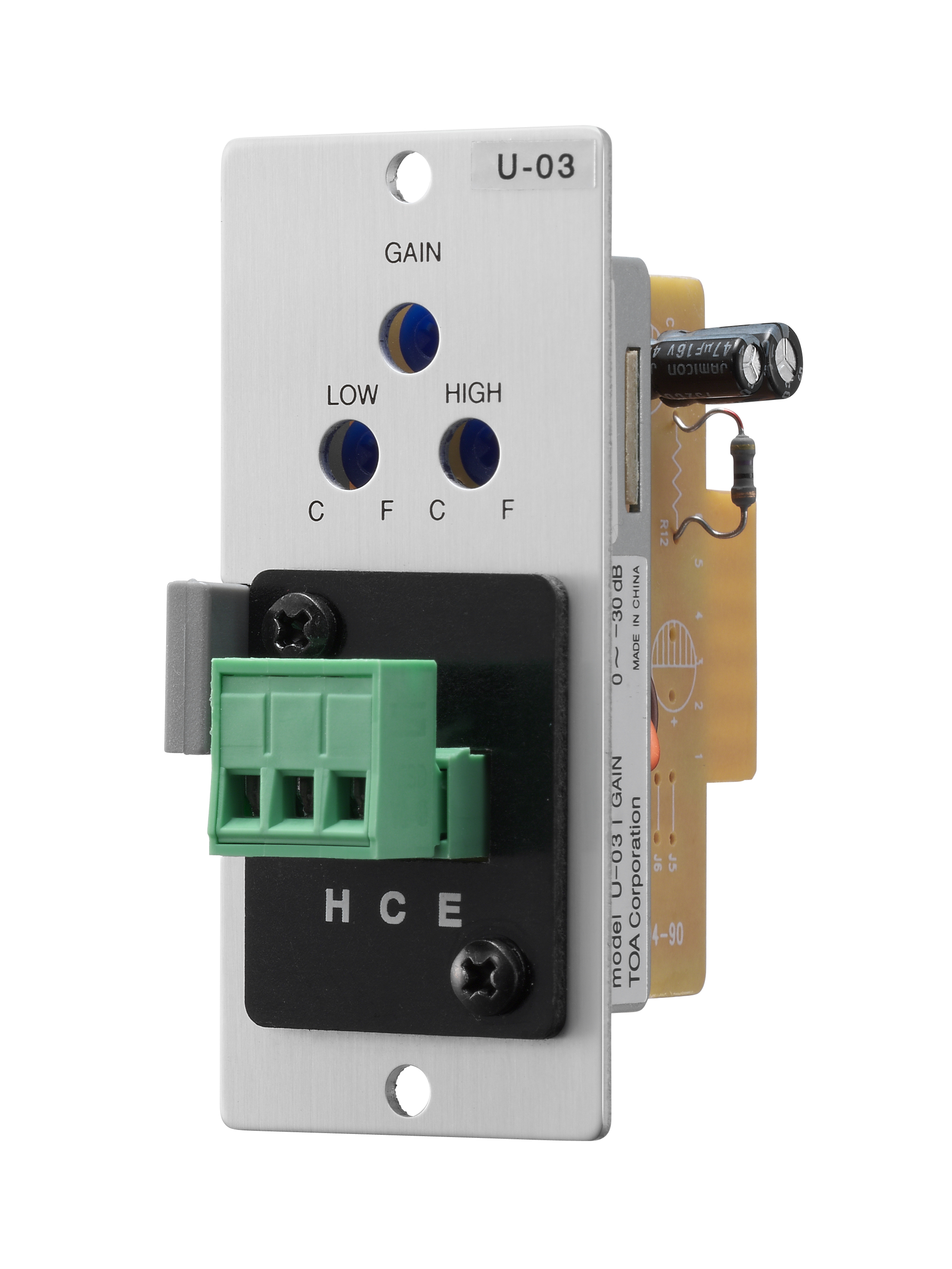

U-03S Unbalanced Line Input with High/Low Cut Filters

U-03S

The U-03S is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a low-cut and a high-cut filter.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 VDC
Current Consumption Less than 8 mA
Input Sensitivity (Rated Output 100 mV ) 100 - 3,600 mV (adjustable)
Low Cut Filter (100 Hz ) -5 - -15 dB
High Cut Filter (10 kHz ) -7 - -13 dB
Noise Output (20 Hz - 20 kHz BPF) Less than 10 μV
Distortion Less than 0.05 %
Frequency Response 20 Hz - 20 kHz
Input Connector 3P terminal block
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 50 g
