T-02S

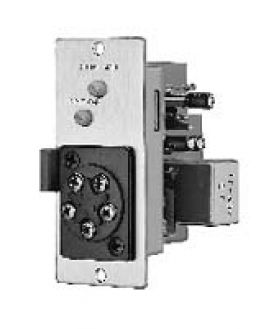

T-02S Line In/Out Preamp

T-02S

The T-02S is a line input module to be used in conjunction with the 900 series components and other TOA equipment.

It has a transformer unbalanced line input with Music-on-hold (MOH) output and screw terminals and gain controls.



QTY: Add to Request for quote Request for quote

Specifications:

* 0 dB = 1 V

Power Source 24 V DC (supplied form the main frame)
Current Consumption 38 mA
Sensitivity AUX Input: Adjustable -20 - 0 dB*
Line Output: Adjustable -16 - 0 dB*
(at 600 Ω terminated, input: -20 dB*)
Source Impedance AUX Input: 220 Ωk, unbalanced transformer-isolated
Line Output: 600 Ω, balanced transformer-isolated
Frequency Response 20 Hz - 20 kHz ±2.5 dB
Distortion 0.1% or less (1 kHz, output: 0 dB*)
Noise Level -90 dB* (20 Hz - 20 kHz BPF)
Gain Mix bus: -20 - 0 dB/slave: 4 - 20 dB
Connector 5 screw terminals
Dimensions 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")
Weight Max. 105 g (0.23 lb)
