AM-1B

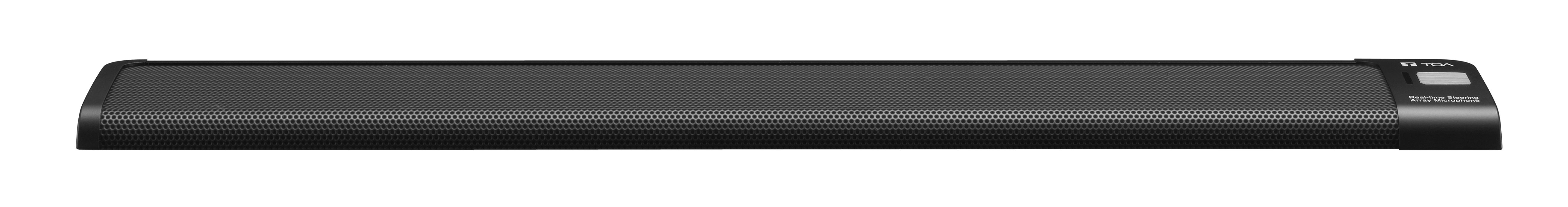

AM-1B Real-Time Steering Array Microphone System

AM-1B

Equipped with a built-in sensor to detect and track sound sources, the TOA Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mics.

AM-1B

  Polycom®:



Specifications:

Power Source 24DCV 200mA (supplied from Control Unit)
Frequency Response 150Hz — 18kHz
Directivity (Beam Width) 50°
Maximum Cable Distance 200ft / 70m (between microphone and control)
Applicable Cable Twisted two-core, shielded cable
Mute Function Mechanical mute switch
Dimensions 485.14 (W) x 19.812 (H) x 59.944 (D) mm (19.1” x 0.78” x 2.36”)
