AM-1CQAM

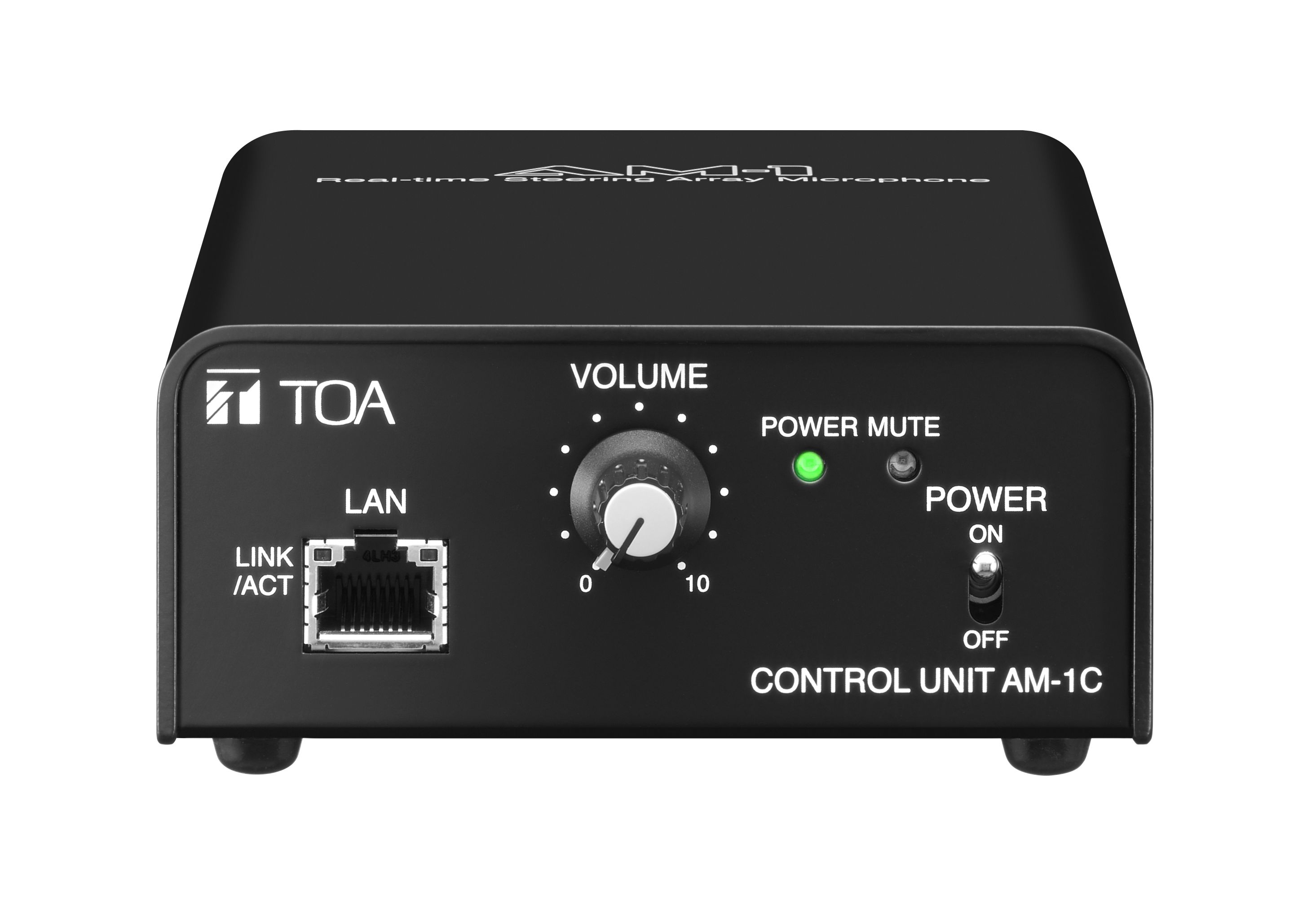

AM-1CQAM Real-Time Steering Array Microphone Control Unit

AM-1CQAM

Equipped with a built-in sensor to detect and track sound sources, the TOA Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mics.

  Polycom®:



Specifications:

Power Source 24DCV 400mA
(including microphone power / supplied by AC adapter)
S/N Microphone Over 90dB
Input Microphone input (audio and communication),
female XLR 3P x 1
Audio Output +4dBu/-10dBV (selectable), male XLR 3P x 2
AES/EBU 24bit 110Ω, male XLR 3P x 1
Network Port RJ45
Accessory AC adapter



AM-1CQAM Control Unit (back)

AM-1C Back
