VP-200VX

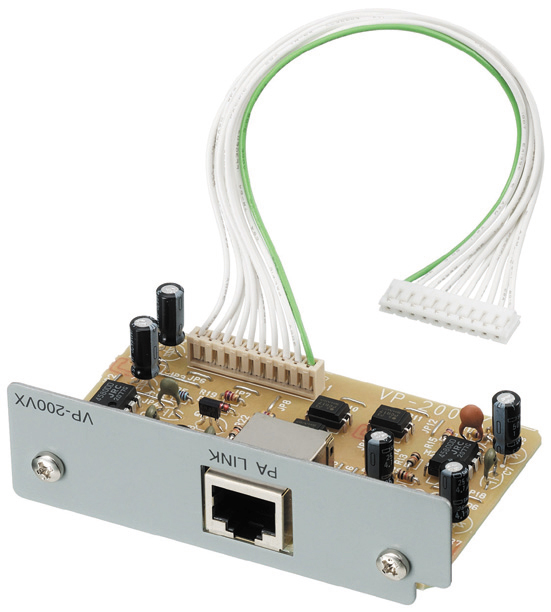

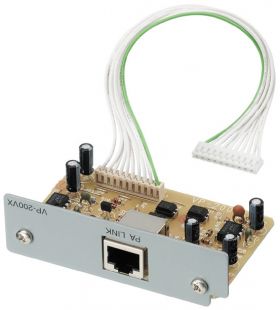

VP-200VX Power Amplifier Input Module

VP-200VX Power Amplifier Input M

The VP-200VX Power Amplifier Input Module is designed to be used in conjunction with the VP-2064, VP-2122, VP-2241 or VP-2421 power amplifier. Compatible with the VM and SX mass notifications systems.



SX-2000 Brochure

QTY: Add to Request for quote Request for quote

Specifications:

Power Source Supplied from VP-2064, VP-2122, VP-2241 or VP-2421
Current Consumption 30 mA or less
Power Amplifier Link RJ45 female connector for connecting the VX-200SP,
VX-200SZ Audio Output module, or SX-2100AO.
Twisted-pair straight cable (TIA/EIA-568A standard)
Finish Panel: Surface-treated steel plate
Dimensions 88 (W) × 25.8 (H) × 53.2 (D) mm
Weight 50 g
Applicable Model VP-2064, VP-2122, VP-2241, VP-2421
