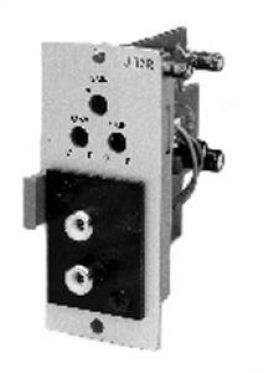

U-13R Unbalanced Line Input with High/Low Cut Filters and Mute-Receive

U-13R

The U-13R is an AUX module to be used in conjunction with the 900 series or AX-1000 amplifier. It has an input that can control muting operations of a signal output.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC
Current Consumption Under 11 mA
Input Sensitivity (Rated Output 100 mV ) 100 - 3,600 mV (adjustable)
Low Cut Filter (100 Hz ) -5 to -15 dB
High Cut Filter (10 kHz ) -7 to -13 dB
Noise Output (20 Hz - 20 kHz BPF) Under 10 μV
Distortion Under 0.05 %
Frequency Response 20 Hz - 20 kHz
Signal Muting Level Over 50 dB
Input Connector RCA pin jacks
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 50 g
