N-8610RM

N-8610RM IP Remote Microphone Station

N-8610RM

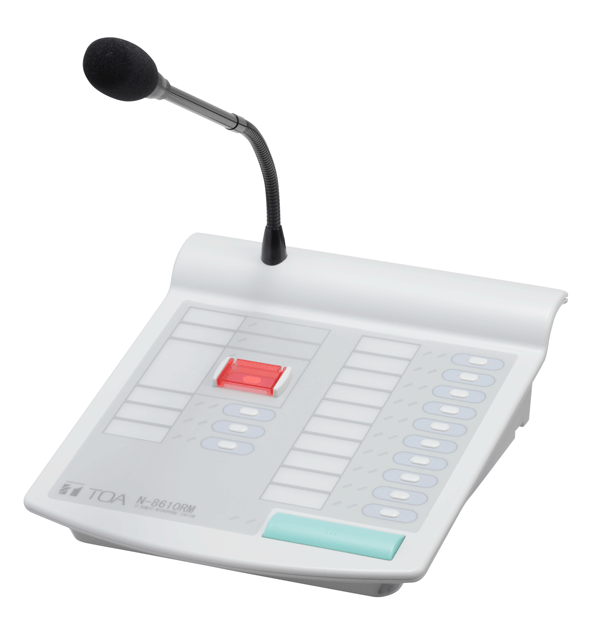

The N-8610RM is an IP remote microphone that employs packet audio technology. High-quality voice output to intercom stations connected to the IP intercom exchange or Multi-Interface Unit and to other N-8610RM units can be achieved by simply connecting the remote microphone to a LAN or WAN network. The N-8610RM features a full range of remote microphone operating capabilities, and is equipped with 14 function keys, including one under a cover, each with its own indicator. Function can be assigned individually to these keys. The number of function keys and indicators can be increased to up to 40 in blocks of 10 with the addition of up to four RM-210 Extension Units. Power can be supplied to the microphone using PoE-compatible switching hub, eliminating the need for the N-8610RM's optional AC adapter. The N-8610RM can also be wall-mounted with the additional use of the optional WB-RM200 Wall-Mounting Bracket.



Specification
* 0 dB = 1 V
Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption Use of the AC adapter (12 V DC): 4 W (microphone only), 8.5 W (when connecting 4 RM-210 Extension units)
Use of the PoE (48 V DC): 5.2 W (microphone only) 7.5 W (when connecting 4 RM-210)
Speech Method Hands-free or handset conversation (use of goose-neck microphone)
Audio Frequency Range 300 Hz - 7 kHz
Microphone Unidirectional electret condenser microphone
Built-in Speaker 6.6 cm (2.6") cone-type, rated output 0.3 W, 8 Ω
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
No. of Connectable Expansion Max. 4 units (maximum 2 units at P0E power supply)
Operation Function keys (including a covered key), talk key
Indicator Power indicator, Status indicator, Selection indicator, Broadcast status indicator, Microphone indicator
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional WB-RM200)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish ABS resin, blueish gray
Dimensions 190 (W) × 76.5 (H) × 215 (D) mm (7.48 × 3.01" × 8.46")" (excluding microphone)
Weight 700 g (1.54 lb)
Accessory CD (for PC setting, maintenance use) …1, Ferrite clamp (for power supply cable, LAN cable, and extension unit cable) x 1 each
Option

Remote microphone extension: RM-210, Wall mounting bracket: WB-RM200, AC adapter: AD-1215P
