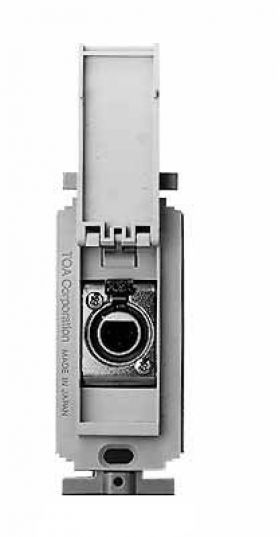

YM-3CF

YM-3CF Mic Connector

YM-3CF

XLR female jack, single gang wall plate with cover.

QTY: Add to Request for quote Request for quote

Specifications:

Connector XLM-3-31PCH-R
Current Capacity 3 A (AC)
Usable Cable Microphone vinyl cable with sectional area of 0.75 ~ 2.0 ㎟
Usable Plate YP-1AF
Usable Plug XLR-3-12C
Finish Cover: ABS resin (off white)
Frame: Steel plate (t=1.2)
Dimensions 45 (W) x 110 (H) x 53 (D) mm (1.77" x 4.33" x 2.28")
Weight  95 g (0.2 lbs)
Accessory Screw M4 x 35 x 2

* When routing a power or speaker line and a microphone line through the same electric box, provide a barrier between the two of insulation.

* For cables with sectional area of under 0.75 ㎟, fold back their cores to increase the sectional area before making a connection.
