HX-7W

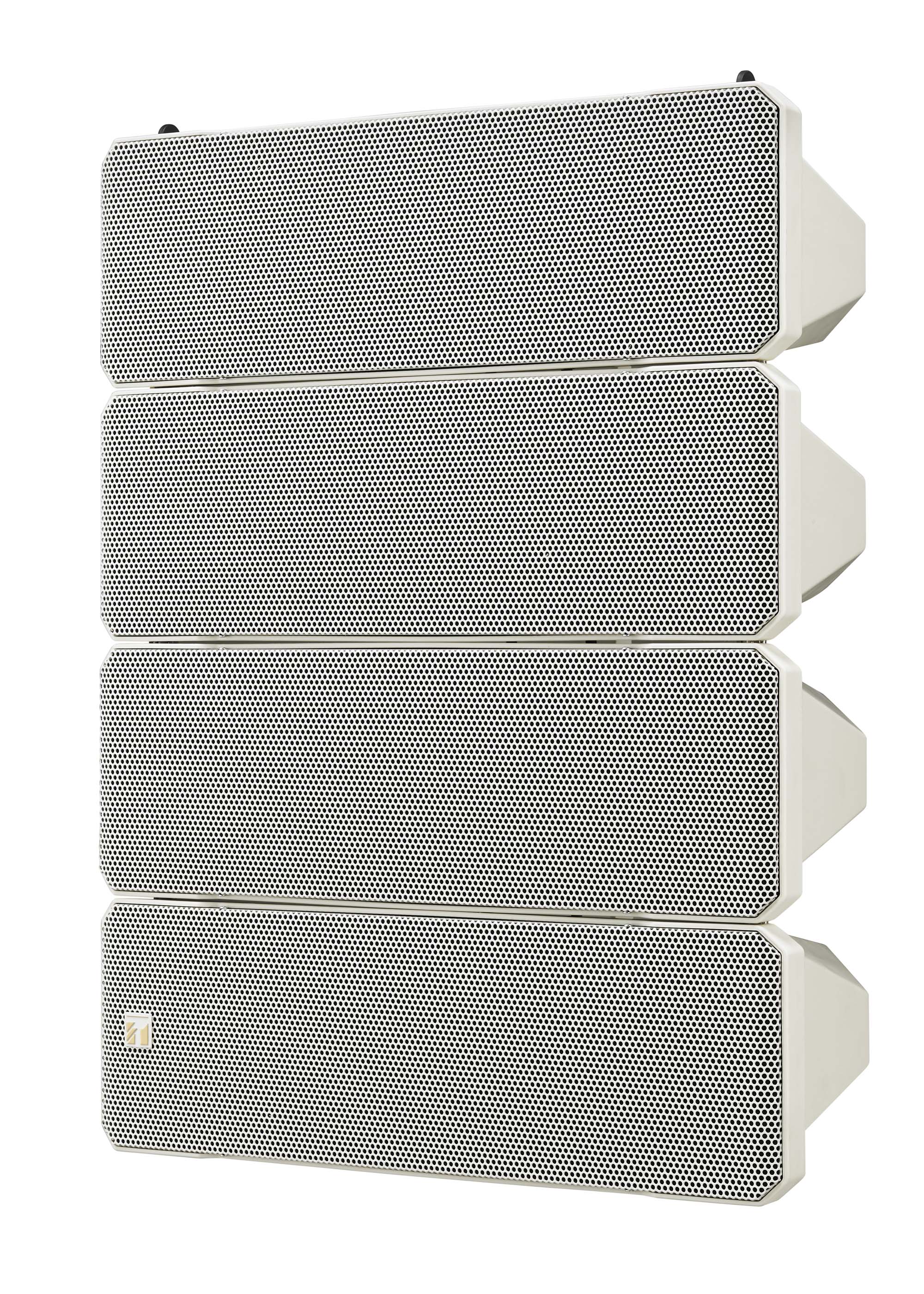

HX-7W Compact Line Array Speaker System

HX-7W

The HX-7W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7W is designed for indoor use.



QTY: Add to Request for quote Request for quote
Specification

Enclosure

 Bass-reflex type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W), Continuous program: 750 W
Rated Impedance 8 Ω
Dispersion (1 to 4k Hz avg.) Single stack/no sub - 15° mode   180° Horizontal  x  75° Vertical
Sensitivity (1 W, 1 m) 100 dB (1 W, 1 m)
Frequency Response 75 Hz - 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical:Depending on directivity angle mode
Speaker Component Low frequency: 4 x13 cm (5.5") cone-type × 8
High frequency: Wave front control horn with compression driver x 4
Input Terminal Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white, paint
Hanging bracket: Steel plate, t3.0, white, paint
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57" x 26.14" x 10.79")
Weight 30 kg (66.14 lbs)
Accessory Hanging bracket L, R (L and R are symmetrical to each other) x 1 each, Hanging bracket mounting bolt x 4
Option

Speaker stand adapter: HY-ST7

Matching transformer: MT-200 - (Transformer Adapter: HY-MT7 Required)
Matching transformer adapter: HY-MT7

Speaker mounting bracket: HY-60DB, HY-CN7B, HY-PF7B, HY-WM7B/W, HY-VM7B/W, HY-C0801

**NOTE: for wall mounting bracket HY-WM7B/W, it requires HY-VM7B/W rigging bracket
**NOTE: for ceiling mount bracket HY-C0801, it requires HY-VM7B/W rigging bracket
