HX-7W-WP

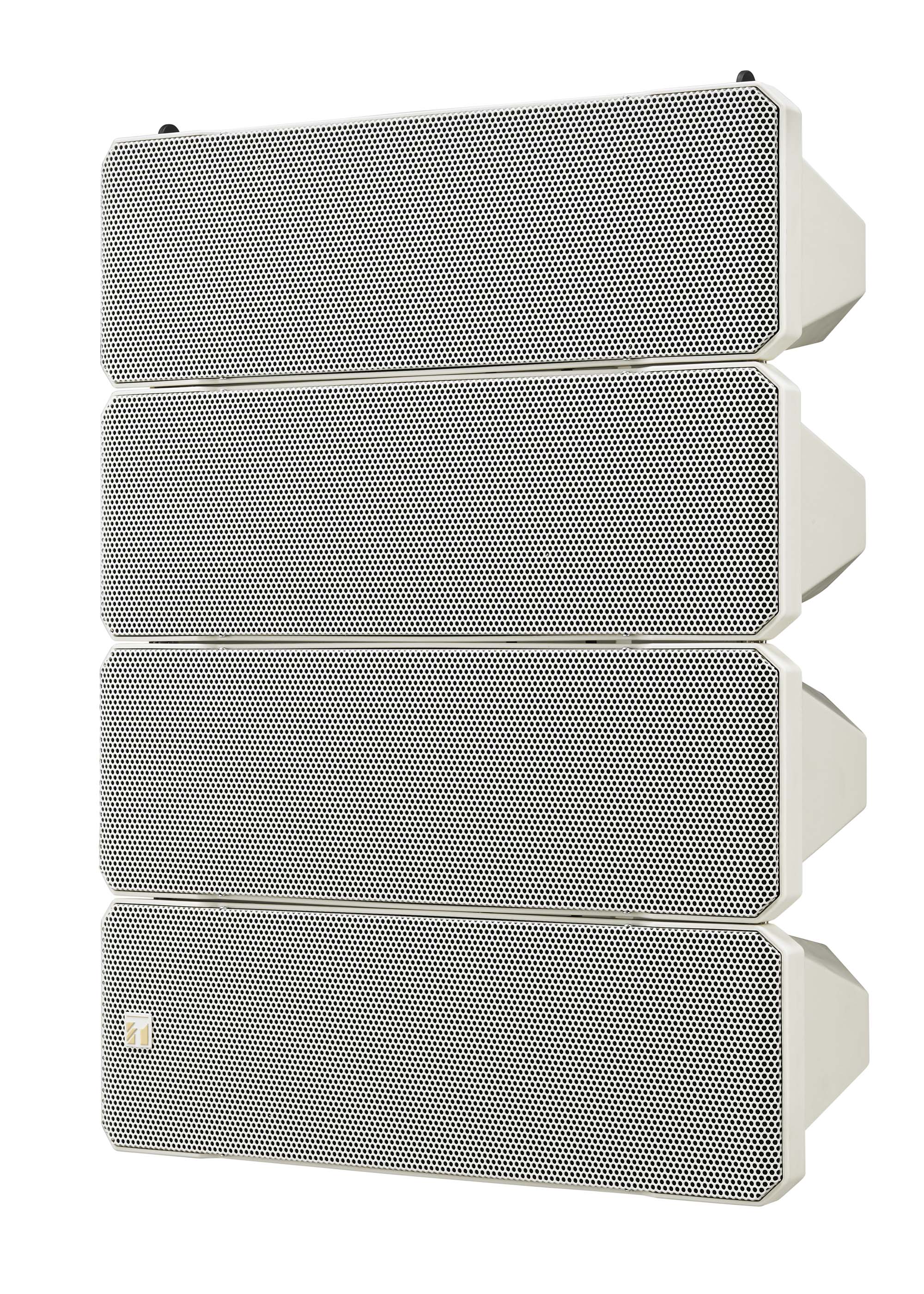

HX-7W-WP Compact Line Array Speaker System

HX-7W-WP

The HX-7W-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7W-WP is designed to be installed under the eaves when used outdoors.



QTY: Add to Request for quote Request for quote
Specification

Enclosure

 Sealed type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W), Continuous program: 750 W
Rated Impedance 8 Ω
Dispersion (1 to 4k Hz avg.) Single stack/no sub - 15° mode   180° Horizontal  x  75° Vertical
Sensitivity (1 W, 1 m) 100 dB (1 W, 1 m)
Frequency Response 105 Hz - 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical:Depending on directivity angle mode
Speaker Component Low frequency: 4 x13 cm (5.5") cone-type × 8
High frequency: Wave front control horn with compression driver x 4
Input Terminal M4 screw terminal, distance between barriers: 9 mm (0.35")
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white, rust proof coating
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57" x 26.14" x 10.79")
Weight 30 kg (66.14 lbs)
Accessory Terminal cover x 1, Terminal cover mounting screw x 4, Rubber packing x 1
Option Matching transformer: MT-200 (*1)
Matching transformer adapter: HY-MT7
Speaker mounting bracket: HY-TM7W-WP, HY-MS7W-WP, HY-60DW-WP HY-CN7W-WP

(*1) When mounting the MT-200 Matching Transformer to the speaker, an optional HY-MT7 Matching Transformer Adapter is required.
Note: Every speaker module must be aimed horizontally or down to keep the weather resistant capability.
