FB-150B

FB-150B Subwoofer System

FB-150B

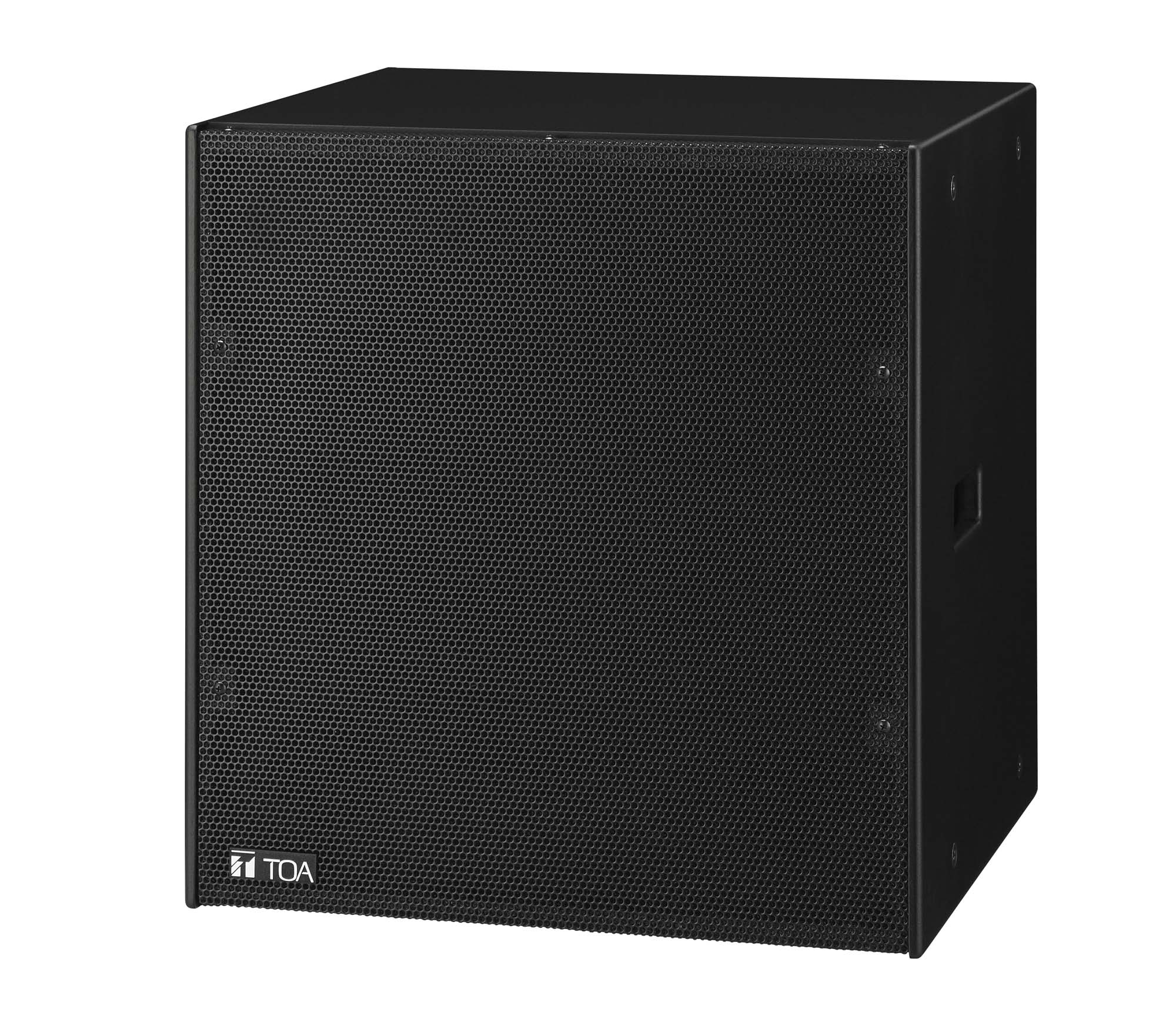

The FB-150B is a compact, indoor-use subwoofer system employing a high-power 38 cm (15") woofer. It is designed for use in conjunction with TOA's HX-7 series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.



QTY: Add to Request for quote Request for quote
Specification
Power Handling Capacity Continuous pink noise: 200 W
Continuous program: 600 W
Impedance 8 Ω
Sensitivity 93 dB (1 W, 1 m)
Frequency Response 40 - 400 Hz (-10 dB)
Speaker Component 38 cm (15") cone-type
Input Terminal Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 12.2 mm (0.48")
Finish Enclosure: MDF, black, urethane paint
Punched net: Surface-treated steel plate, black, paint
Dimensions 505 (W) × 528 (H) × 477 (D) mm (19.88" x 20.79" x 19.17")
Weight 30 kg (66.14 lbs)
Option Speaker rigging frame: HY-PF7B
