HX-PF7B

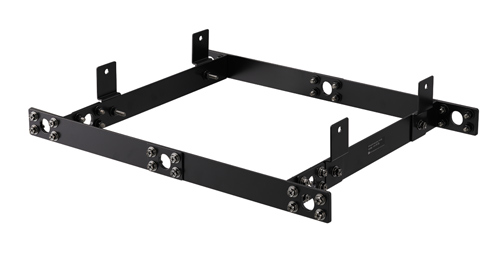

HY-PF7B Rigging Frame

HY-PF7B

The HY-PF7B is used exclusively to suspend the HX-7 speaker system from the ceiling. The FB-150 series Subwoofer can be suspended using this frame and the frame's supplied mounting brackets.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, black, semi-gloss paint
Dimensions 645 (W) × 50 (H) × 472 (D) mm (23.39" x 1.97" x 18.58") (excluding projection)
Weight 4 kg (8.82 lbs)
Accessory Subwoofer mounting bracket x1, Bracket mounting bolt x 1 set
