HY-CN7W-WP Extension Bracket

HY-CN7W-WP

The HY-CN7W-WP is used to join 2 HX-7W-WP series speaker systems, typically for the purpose of achieving better speaker directivity control in lower frequencies. Such directivity control helps achieve clearer and longer-range sound reproduction in locations where sound efficiency may be hampered by conditions like long reverberation time or a high level of background noise. This bracket is designed for outdoor use.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, white, semi-gloss, paint
Weight 300 g (0.66 lb)
Accessory Spacer (golden) x 2, Spacer (black) x 1, Rubber ring, x 2, Flange nut x 2, Rear angle bar mounting bolt x 2, Side angle mounting bolt x 2

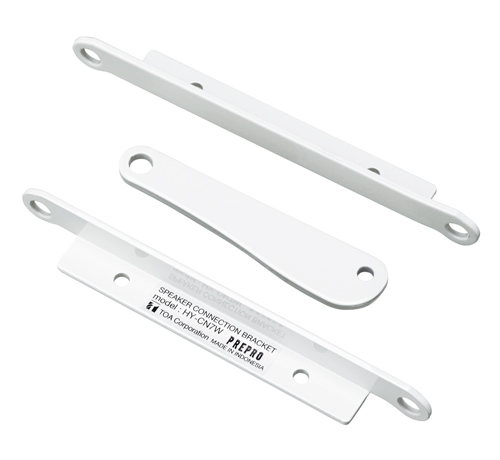

Product Composition Side angle x 2, Rear angle bar x1

Note: Every speaker module must be aimed horizontally or down to keep the weather resistant capability.
