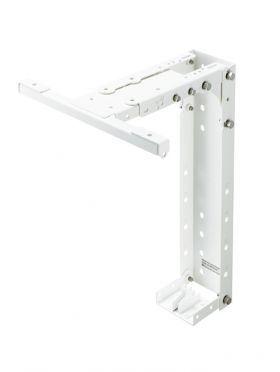

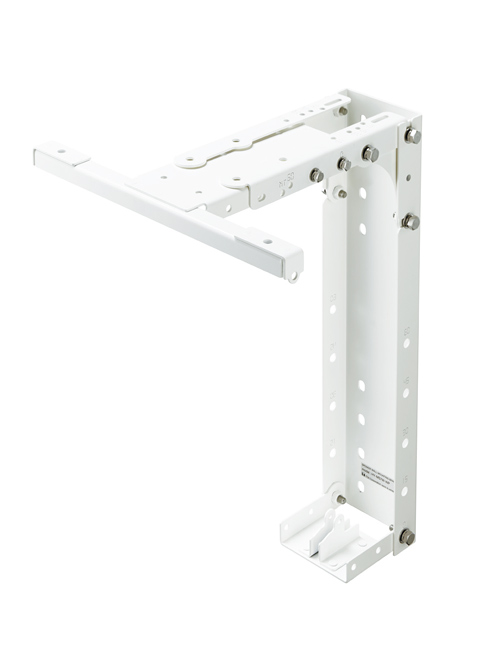

HY-MS7W-WP Speaker Wall Mounting Bracket

HY-MS7W-WP

The HY-MS7W-WP Speaker Wall Mounting Bracket is intended for mounting the HX-7W-WP Speaker System to the wall under outdoor eaves. These brackets also have provision for mounting the MT-200 Matching Transformer directly to this bracket.



QTY: Add to Request for quote Request for quote
Specification
Finish Steel plate, white, semi-gloss paint
Weight 7 kg (15.43 lbs)
Accessory Speaker mounting bolt x 1 set, Bracket mounting bolt x 1 set, Matching transformer mounting nut x 2
Product Composition T-bracket x 1, Mode bracket (L and R)* x 1 each, L-bracket (L and R) * x 1 each, Base Bracket x 1, Bottom bracket x 1
* The brackets L and R are symmetrical to each other

Note: Bolts and nuts for mounting the bracket on the wall are not supplied.
