HA-450H

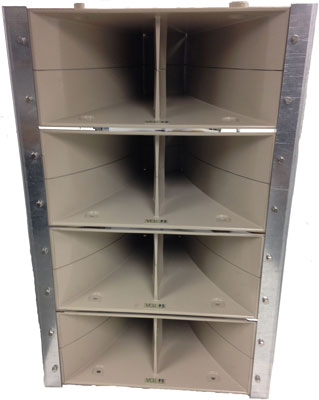

HA-450H Horn Array Speaker

HA-450H

The HA-450H is an outdoor long range speaker incorporating "line array speaker technology" for delivering the sound in the far distance. It consists of 4 steel long-throw CD horns with 4 x 50W @ 70V weather-proof compression driver and metal hardware for stacking multiple horns.

**Special Order Product

QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 50W x4 (Max. at 70V)
Impedance (Individual Driver) 100 Ω (50W), 200 Ω (25W), 330 Ω (15W), 670 Ω (7.5W)
Selectable by rotary switch
Sound Pressure Level (SPL)  110 dB (1W, 1m)
Frequency Response 150 Hz to 6,000 Hz
Finish Horn: Aluminum die casting, beige, powder coating
Driver Unit case: Weather proof ABS resin, brown
Bracket: Rolled steel plate, powder coating
Dimensions 19.8" (W) x 32.55" (H) x 23.62" (D) (503 x 827 x 599mm)
Weight 110lb (50kg)
