EV-700 QCEA00

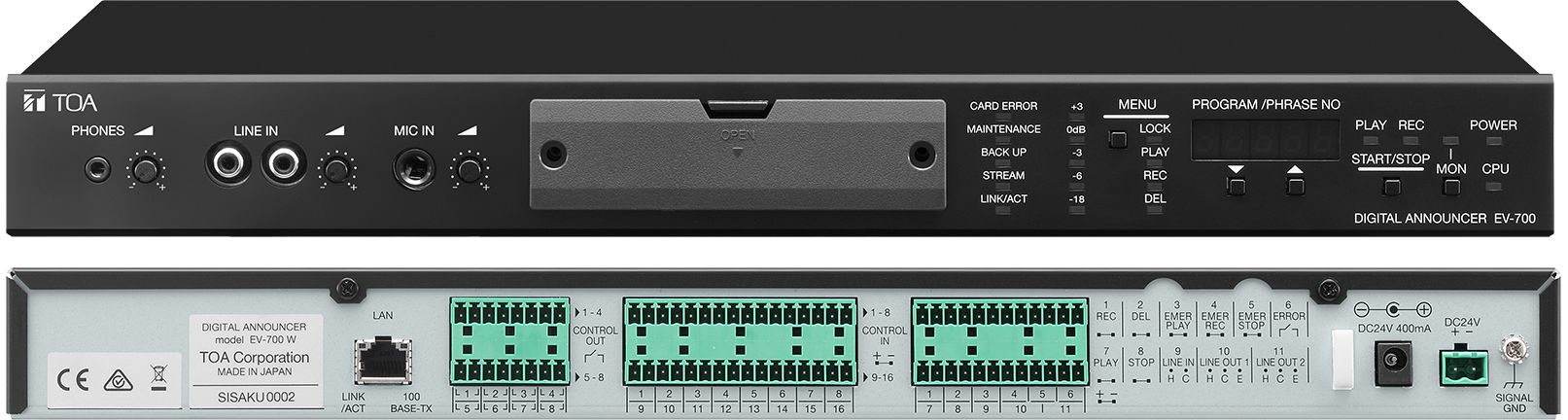

EV-700 Networkable Digital Announcer

EV-700 QCEA00

Adding the TOA EV-700 Digital Announcer to your existing PA system provides numerous benefits for large facilities including; retail stores, shopping malls, schools, factories and railway lines. The EV-700 permits easy manual distribution or automatic activation by external device of timed and repeat announcements, BGM and other audio programs with excellent sound quality. Creation and editing of various sound source files and programs, updating of settings and activation of announcements can be handled easily by direct input or managed remotely via a network. And prerecorded emergency messages are ready for broadcast the moment they are needed.

     v1.04.06

QTY: Add to Request for quote Request for quote



Specification
* 0 dB = 1 V
Power Source Supplied from an external 24 V DC (21.6 − 26.4 V)/400 mA power supply, Removable terminal block (2 pins) or from an optional AD-246 AC adapter
Power Consumption 10 W
Wave Format 44.1 kHz/32 kHz sampling rate, 16 bits PCM, WAV file (monaural)
Sound Source Rewriting Method LAN data transfer/Analog recording/
Direct write to memory card using the setting software
Audio Input MIC: −55 dB*1 (microphone input volume control in maximum position), 600 Ω, unbalanced, ø6.3 phone jack (2P)
LINE(rear): −20 dB*1 (line input volume control in maximum position), 10 kΩ, unbalanced, Removable terminal block (12 pins)
LINE(front): −29 dB*1 (line input volume control in maximum position), 10 kΩ, unbalanced, RCA pin jack
Audio Output  LINE 1, 2: 0 dB*1, 600 Ω, unbalanced, Removable terminal block (12 pins)
Headphones: 0 dB*1, 100 Ω, monaural, ø3.5 mini jack (3P)
Frequency Response 20 Hz − 20 kHz ±3 dB (1 kHz)
50 Hz − 14 kHz ±3 dB (IT-450 mounted, 1 kHz)
Distortion  0.3 % or less (1 kHz, rated output)
Storage Media  Compatible with CompactFlash™ specification Memory card
Number of Mountable Memory cards 2 (1 Memory card containing preset sound sources is supplied.)
Backup operation available when 2 cards are mounted.
Number of Recordable Phrases 32768
Maximum Recording Time About 3 hours (at 44.1 kHz sampling rate) or about 4 hours (at 32 kHz sampling rate)
Audio Output Method Single channel monaural
Number of Playback Program Direct mode: 16 programs
Binary mode: 256 programs
1 emergency message takes precedence over the above programs and is played back.
R.E.M. (Recording Endless Message) playback *2 can be performed.
Control Input  Activations 1 − 16, playback, pause, recording, erasure/clear, emergency playback, emergency recording, emergency pause
No-voltage make contact input, pulse make length: 50 ms or more, open voltage: 30 V DC, short-circuit current: 10 mA,
Removable terminal block (16 pins)
Control Output  Shorting outputs 1 − 8 (busy), Error: contact capacity: 30 V DC, 0.5 A, Removable terminal block (8 pins)
Network
Network I/F 100BASE-TX
Network protocol TCP/IP, UDP, HTTP, FTP
Connector RJ45 connector
Operating Display 7-segment LED, 5 digits
Operating Temperature 0 °C to 40 °C (32 °F to 122 °F)
Operating Humidity  0 %RH or less (no condensation)
Finish  Panel: Aluminum, black, 30 % gloss, paint
Case: Pre-coated steel plate, black, 30 % gloss
Dimensions 420 (W) x 44 (H) x 222 (D) mm (16.54" x 1.73" x 8.74")
Weight 2.4 kg (5.29 lbs.)
Accessory Memory card (Containing prerecorded audio files) x 1, Rubber foot x 4, Removable terminal plug (2 pins) x 1,
Removable terminal plug (8 pins) x 2, Removable terminal plug (16 pins) x 2, Removable terminal plug (12 pins) x 2,
Front cover fixing screw x 2, CD (setting software) x 1
Option AC adapter: AD-246, Rack mounting bracket: MB-15B
*2 An emergency broadcast function that repeatedly plays the sound source recorded on the spot with the highest priority in case of an emergency situation.
[NOTE]
• Line output can be converted to balanced type using an optional IT-450 transformer.
• CompactFlash is a trademark of SanDisk Corporation.
Specifications are subject to change without notice.
