VM-3240VA AMQ

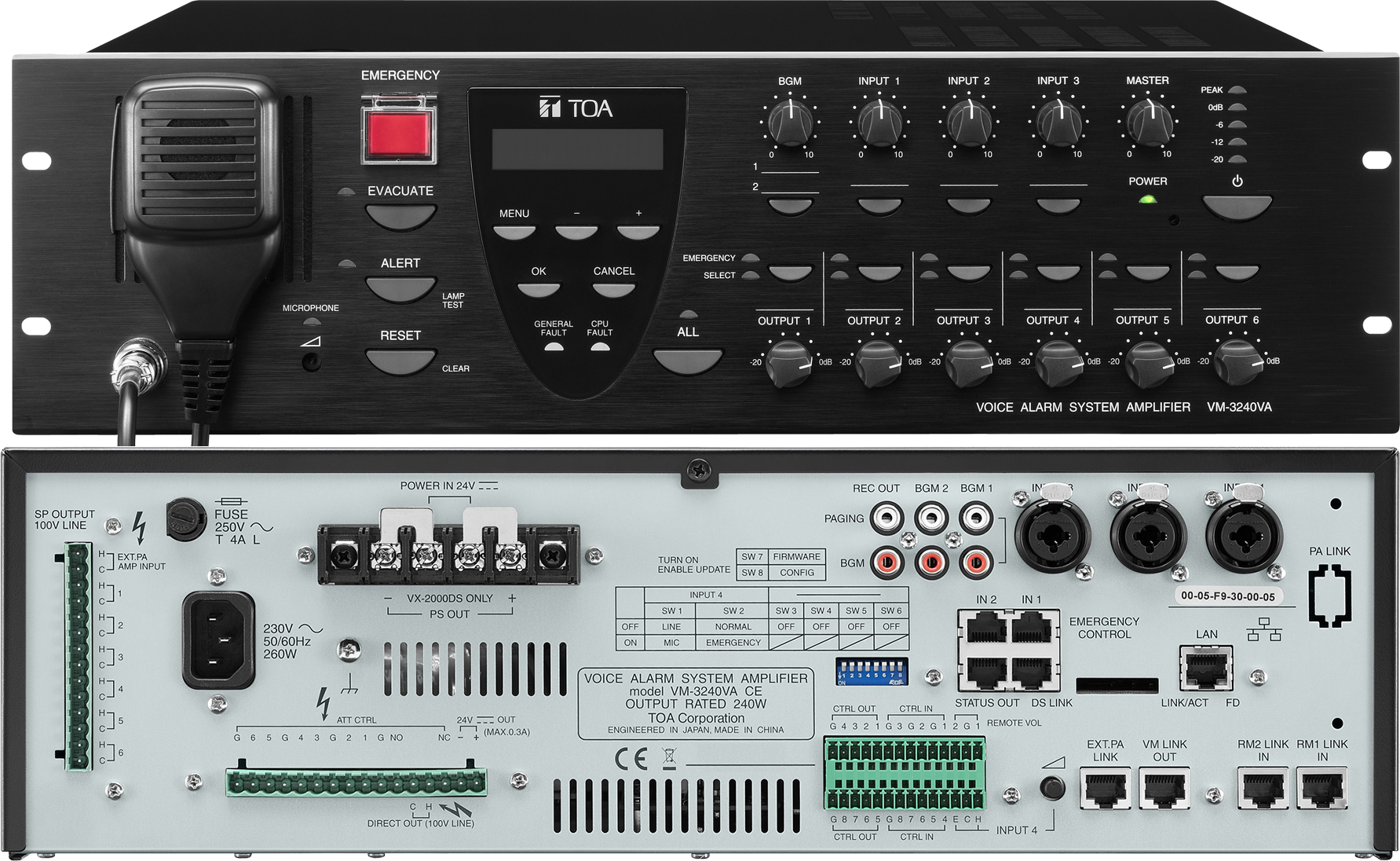

VM-3240VA AMQ Voice Alarm System Amplifier [UL 2572 and CAN/ULC-S576 Certified]

VM-3240VA AMQ

The VM-3000 Series is the world's first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings. It is ideal for small and medium-sized applications. It incorporates such emergency functions as continuous speaker line monitoring and a built-in voice alarm. This easy-to-install system also offers PA broadcasting, paging and BGM functions that ensure consistently high intelligibility. The VM-3000 Series is digitally audio processed and controlled, and may be set up and operated directly by using the controls and LCD display on the front panel. A dedicated PC software configuration capability is also provided for establishing settings via LAN. The incorporation of wide-ranging functional capabilities, superb reliability and versatility make the VM-3000 a highly cost-effective emergency broadcast system.

    (software)

(Operating Instructions)
 (Operation Matrix Chart)

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 120 V AC, 60 Hz
Power Consumption 690 VA (at rated output), 260 W (According to UL60065), 63 W (at no signal)
Rated Output 240 W, 21 Ω (according to UL60065)
200 W, 25 Ω (according to UL2572)
200 W, 25 Ω (according to CAN/ULC-S576 with separate UPS)
100 W, 50 Ω (according to CAN/ULC-S576)
(All total of Speaker output 1 – 6 and Direct Output)
Frequency Response 50 Hz – 20 kHz, ±3 dB (at 1/3 rated output), 800 Hz – 2.8 kHz (according to UL2572); 400 Hz – 4 kHz (according to CAN/ULC-S576)
Distortion Under 0.7% (at rated output, 1 kHz)
S/N Ratio Over 85 dB
Audio Input/Output Characteristic Sampling frequency 48 kHz
A/D D/A CONVERTER: 24 BIT
Input Input 1 – 3: –50 dB* (MIC) / –10 dB* (LINE) (changeable), 600Ω, electronically balanced, combined XLR connector (female) / phone jack
Input 4: –50 dB* (MIC) / –10 dB* (LINE) (changeable), 600Ω, electronically balanced, removable terminal block (14 pins)
BGM 1 – 2: –10 dB*, 10 kΩ, unbalanced, RCA pin jack
External AMP Input: 70 V line, removable terminal block (14 pins)
Output Speaker output 1 – 2: Max. (240 W) per output
Speaker output 3 – 6: Max. (100 W) per output
Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins)
Allowable minimum load: 245 Ω (20 W) at 70 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins)
Recording output BGM/Paging: 0 dB*, 10 kΩ, unbalanced, RCA pin jack
Ground faults detection: 0 Ω
Wire to wire faults detection: 0 Ω
RM Link Input 1 – 2: Connecting the RM-300MF/200M Remote Microphone, RJ45 female connector
Maximum distance: Total 800 m between this unit and remote
microphones
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Network I/F 10BASE-T/100BASE-TX (selectable by automatic negotiation), RJ45 female connector; Maximum distance: 100 m between this unit and a switching hub; Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
VM Link Output: Connecting the VM-3240E, RJ45 female connector
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
General Control Input 1 – 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 – 8: Isolated open collector output, withstand voltage: 30 V DC,operating current: 10 mA or less, removable terminal block (14 pins)
Power Input/Output Power in: Connecting the VX-2000DS only (operating range: 20 – 40 V DC); PS out: 28 V DC / 18 A;
M4 screw terminal, distance between barriers: 11 mm
22 V DC Output 22 V DC Special Application, Maximum feeding current 0.3 A (for RM-200M only)
DS Link Connecting the VX-2000DS, RJ45 female connector; Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Finish Panel: Aluminum, hair-line, black;
Case: Surface-treated steel plate, black, paint
Operating Temperature 0 to 49°C (32 to 120°F)
Operating Humidity 5% to 95% RH (no condesnsation)
Dimensions 482 (W) × 132.6 (H) × 431.2 (D)mm (18.98” x 5.22” x 16.98”)
Weight 16.5kg (36.38 lbs)
Accessories AC power cord (2m) × 1, Emergency microphone × 1, Plastic foot × 4, Plastic foot mounting screw × 4, Removable terminal plug (14 pins) × 3, Removable terminal plug (16 pins) × 1, Link cable (3m) × 2,
Setting software (CD) × 1
Option Input transformer: IT-450
UL Certified UL 2572 and CAN/ULC-S576
