VX-2000DS AMQ

VX-2000DS AMQ Emergency Power Supply [UL 2572 and CAN/ULC-S576 Certified]

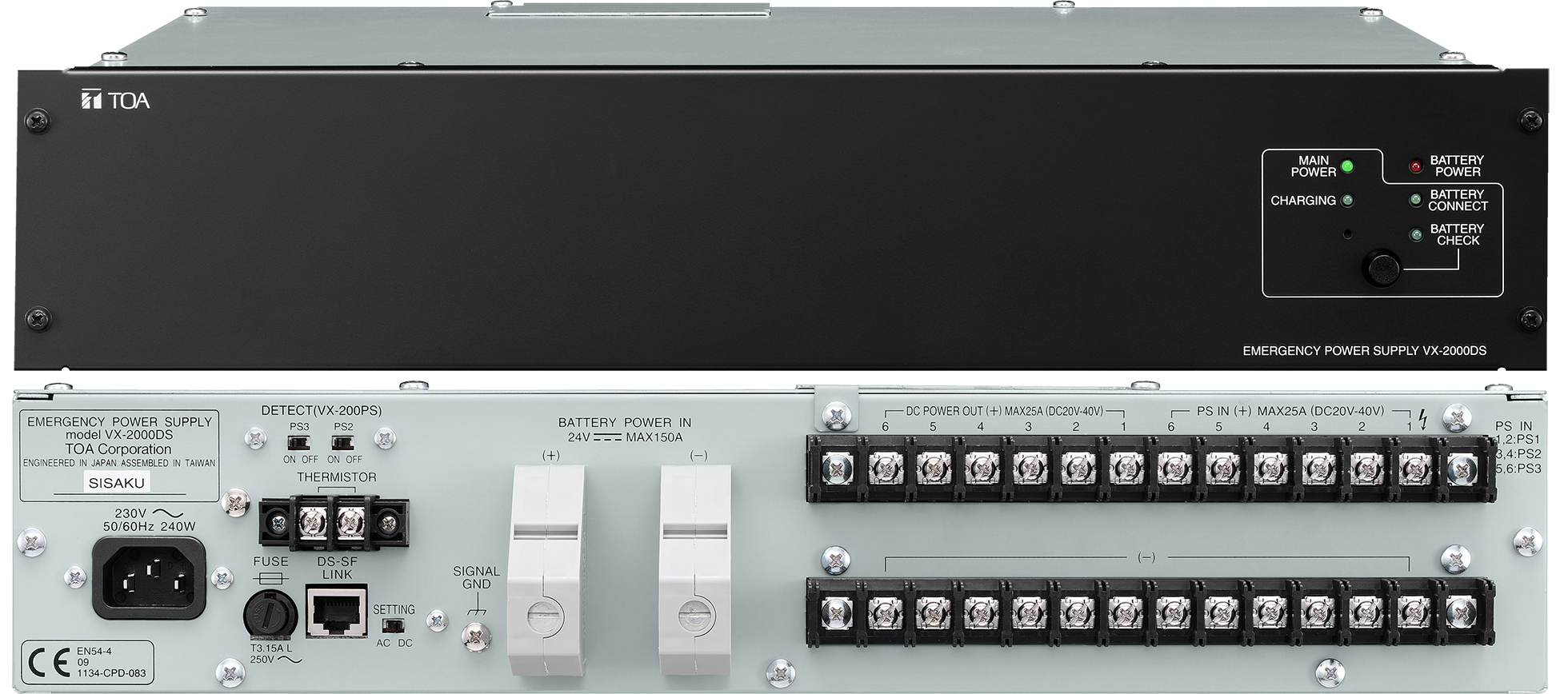

VX-2000DS AMQ

The VX-2000DS Emergency Power Supply Unit supplies DC backup power to each component in the VM-3000 system. It keeps the 2 × 12 V sealed lead batteries charged, compensating for the temperature of the battery charging voltage. When AC Power is disrupted, the VX-2000DS is automatically switched to the backup batteries. Compatible with the VM and SX mass notifications systems.

The worlds first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings.




 (Operation Matrix Chart)

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 120 V AC, 60 Hz
Power Consumption 240 W max.
Applicable Battery Panasonic LC-X/LC-P Series (12 V x 2)
Charging Method Trickle charging
Charging Current 5 A max.
Charging Output Voltage 27.3 V  ±0.3 V (at 25 °C)
Temperature correction coefficient: -40 mV/°C)
Power Supply Input 6, M4 screw terminal, distance between barriers: 11mm
DC Power Output Number of connectable equipment: Up to 3 VM-3240 AMQ, M4 screw terminal, distance between barriers: 11mm
Control Connector RJ45 female connector for connecting the VM-3000 system
Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure
Battery Connection 1 pair of positive and negative terminals
Applicable cable diameter: AWG 6 - AWG 0 (AWG 1/0) (Line resistance within 4 mΩ/total)
Cross sectional area: 16 - 50 ㎟
Operating Temperature 0 to +40°C (32 to 104°F)
Finish Panel: Surface-treated steel plate, black (30% gloss), paint
Dimensions 482 (W) x 88.4 (H) x 377.6 (D) mm (18.98" x 3.5" x 13.29")
Weight 10.5kg (23.15 lb)
Accessories Rack mounting screw (5x12) x 4, Fiber washer x 4, Blade fuse (40A) x 3, Fuse (T6.3 A L) x 1, Insulating sheet x 1, Thermal insulating sheet x 1, Power cable (2 m) x 1



Fuse ratings Blade fuse (40 A), Blasde fuse (7.5 A), Fuse (7.5 A)
Maximum output current draw from the battery 43.5 A
Maximum internal resistance of the battery and its associated circuitry, Ri max 50 mΩ
Recommended cable parameter for DS-SF Link Twisted-pair straight cable (TIA/EIA-568A standard)
