WP-700-AM

WP-700-AM Remote Control Panel

WP-700-AM

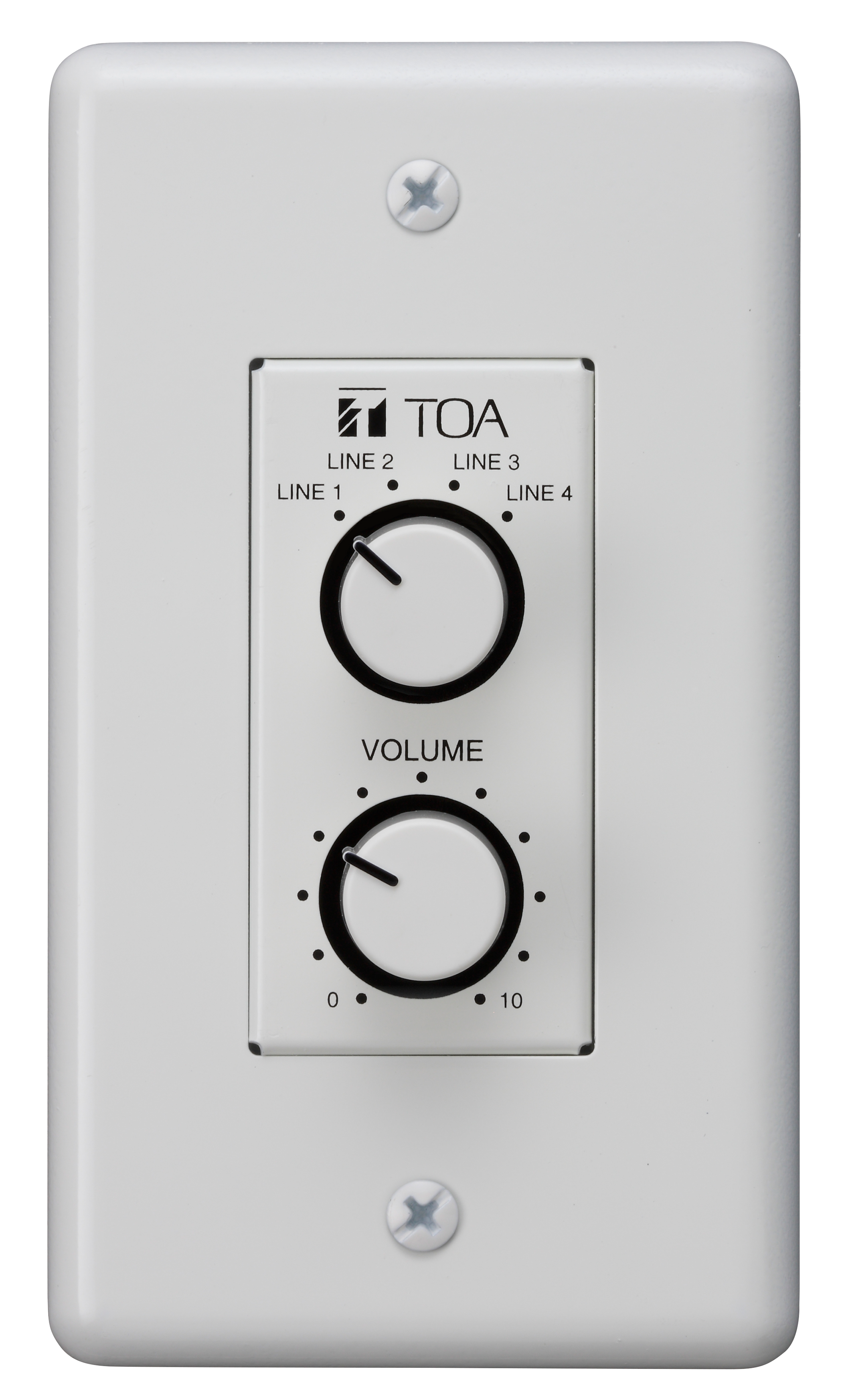

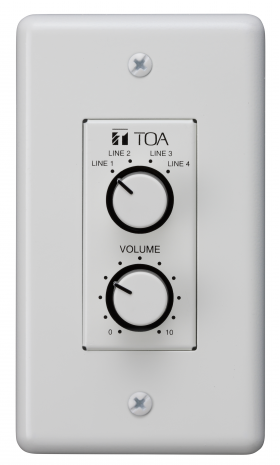

WP-700-AM: Remote Control Panel is a remote control switch/volume panel designed to be used with the MA-725F or MM-700F amplifiers. Provides remote select input source and adjusts volume levels through an Ethernet cable. It can be mounted in a 1-gang electrical box.

   DSP Preset:DSP Preset (MA-700 Series)

QTY: Add to Request for quote Request for quote
Specifications

Applicable Cable CAT5/5e6 STP cable
Control Operation Input select switch x 1, Volume control knob x 1
Terminal RJ-45 connector
Operation Temperature -10 °C to 40 °C (14 °F to 104 °F)
Finish Surface treated steel plate, white paint (RAL 9016)
Dimension  72 (W) x 128 (H) x 56.6 (D) mm (2.83" x 5.04" x 2.23")
Weight 210 g (0.463 lb)
Accessory Box mounting screw: No.6-32UNC x 30 ...2, Panel mounting screw: No.6-32UNC x 6 ...2
