A-9060SM2 9000M2 Series Amplifier

A-9060SM2 CU

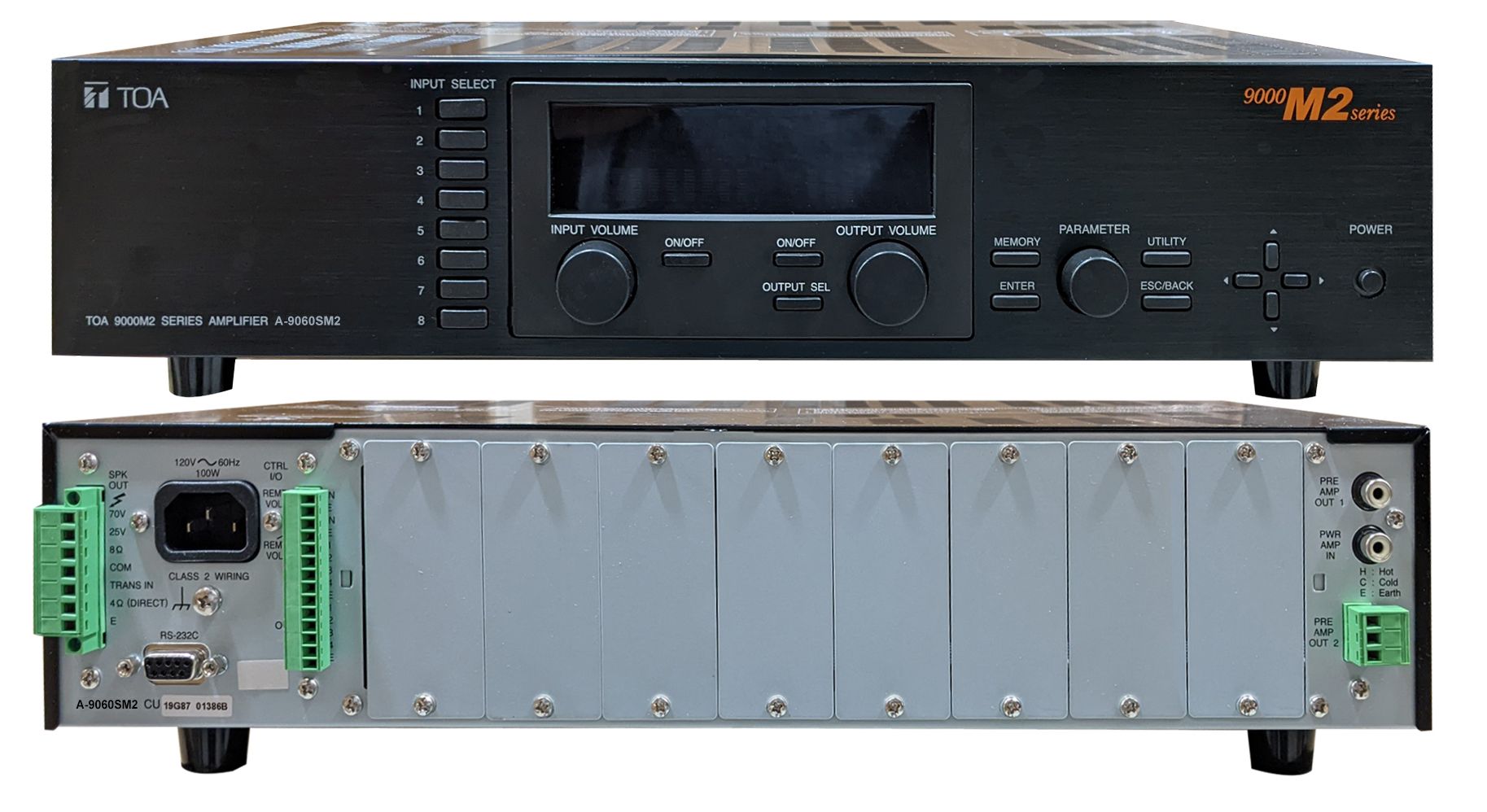

The A-9060SM2 Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with one 60 W power amplifier, it can individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

  software

QTY: Add to Request for quote Request for quote
Specification
(*1) 0 dB = 1 V
Power Source 120 V AC, 60 Hz
Power Consumption 100 W
Rated Output 60 W
Audio Input Max. 8 channels, modular construction (modules optional)
Power amplifier input: 0 dB(*1), 10 kΩ, RCA pin jack
Audio Output Preamplifier output 1: 0 dB(*1), 300 Ω, unbalanced, RCA pin jack
Preamplifier output 2: 0 dB(*1), 600 Ω, balanced, removable terminal block (3 pins)
Speaker output: Removable terminal block (7 pins)
(Direct) 60 W, 4 Ω, unbalanced
(Transformer) 60 W, 8 Ω 25 V & 70 V, balanced
Module Slot Analog input (slot 1 - 8): -10 dB(*1), 10 kΩ, unbalanced
Digital input (slot 1 - 4): 24 bit/48 kHz
MIX output (slot 1 - 8): -14 dB(*1), 330 Ω (CH 1 prefader output), unbalanced
Digital output (slot 5 - 7): 24 bit/48 kHz
Power supply (slot 1 - 8): +24 V, -24 V, +6 V DC
Digital Audio Signal Reference Level -20 dBFS
Power Bandwidth (Direct) 20 Hz - 20 kHz, 0.02 % THD
(Transformer) 50 Hz - 20 kHz, 0.5 % THD
Frequency Response Power amplifier section: 20 Hz - 20 kHz, +0, -1 dB
Analog input module to speaker output: 20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion Power amplifier section: 0.008 % (22 kHz LPF, 1 kHz, rated power)
Analog input module to speaker output: 0.008% >>> 0.01%  (22 kHz LPF, 1 kHz, rated power)
S/N Ratio At Input short, 20 Hz - 20 kHz, set to ALL FLAT or OFF setting
Output volume min.: 90 dB (preamplifier output)
Output volume max.: 61 dB
(preamplifier output, Input 1 volume: 0 dB, Other Inputs: OFF)
Power amplifier section: 110 dB
Cross Talk 64 dB or more (at 20 kHz)
Tone Control Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
Speaker Equalizer 10 (setup software has 30 TOA speaker presets)
High-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor Depth: 1 - 5
Delay 0 - 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only
Scene/Event Memory 32
Auxiliary Function Key lock function
Control Input/Output RS-232C(*2), D-sub connector (9 P, female)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less, removable terminal block (14 pins)
Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,
control current: 50 mA, removable terminal block (14 pins)
Remote volume: 2 channels, connect a 10 kΩ/linear taper variable resistor or
input the DC voltage of 0 to +10 V, removable terminal block (14 pins)
Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint
Dimensions 420 (W) × 107.6 (H) × 355 (D) mm (16.54" × 4.24" × 13.98")
Weight 11 kg (24.25 lb)
Accessory Power cord (2 m (6.56 ft)) …1, Rack mounting bracket …2, Bracket mounting screw …4,
Blank panel …7, Blank panel mounting screw …14,
Removable terminal plug (3 pins) …1, Removable terminal plug (7 pins) …1,
Removable terminal plug (14 pins) …1, CD …1
(*2) Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port.
Notes: AMX is a trademark of AMX Corporation.
Crestron is a trademark of Crestron Electronics, Inc.
