MM-700F-AM

MM-700F Matrix Pre Amplifier

MM-700F-AM

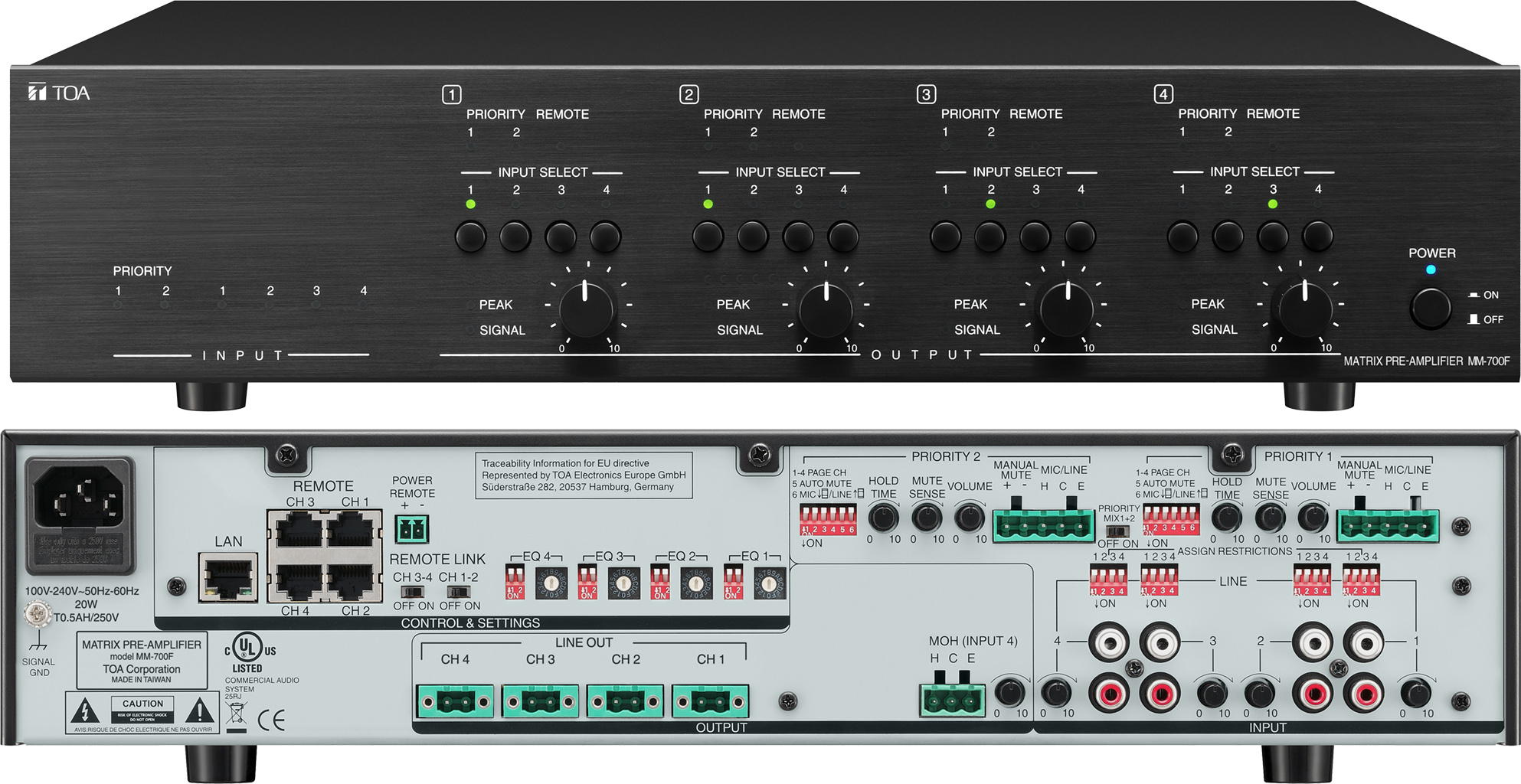

The MM-700F is a 6-input matrix mixer: 4 of its inputs are configured for BGM or other line-level sources, while two balanced inputs are designated for priority sources, such as paging mics or message players. A totally digital product sporting 24Bit/48kHz digital sound quality, its simple user-interface belies its advanced inner workings. The only controls any user needs to access are the front panel source select buttons and four output level (zone) controls. All other controls are placed on the rear panel to prevent unauthorized tampering. An optional wall control (WP-700-AM) can be connected via a single shield CAT5 cable to each of the four output channels, allowing access to volume and source select.
(*)MA-725F only



      GUI Manual  GUI manual icon
DSP Preset DSP Preset (MA-700 Series)

QTY: Add to Request for quote Request for quote

Specifications:

Power Source 100 - 240V AC, 50/60Hz
Power Consumption 9 W or less (standby)
Frequency Response 20Hz - 20 kHz (-3 dB / + 1 dB)
Total Harmonic Distortion 0.5% or less, at 1kHz, rated output
Certifications cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A
Input Priority 1-2: Mic -60 dB/Line -10 dB selectable, 2.2 kΩ, electronically-balanced, removable terminal block
Line In 1-4: -10 dB, 10 kΩ, unbalanced, 2 RCA jacks (Stereo summing)
Output Line Out 1-4: 0 dB*, 600 Ω, unbalanced, removable terminal block
MOH: 0 dB*, 600 Ω, transformer balanced, removable terminal block
DSP Preset 16 presets in 4 banks at each output channel, selectable
S/N Ratio Mic: 60 dB* or more, Line: 75 dB* or more (A-weighted)
Muting Manual mute / Automatic mute
Mute Hold Time 50ms - 10 seconds, adjustable
Priority Level PRIORITY 1 > PRIORITY 2 > LINE 1-4
Control Power: ON/OFF switch, Power remote terminal
Priority 1-2: MIC/LINE selector switch, Gain control, Assign switch, Auto mute switch, Mute sense control, Manual mute terminal, Mute hold time control, Priority mix switch
Line In 1-4: Gain control, Assign restriction switch
Output 1-4: LINE In 1-4 selector switch, Output gain control, DSP bank selector switch, DSP preset selector switch
Remote 1-4: Remote control connector (RJ-45), Remote link switch
Indicators Power: 1 Power LED
Priority 1-2: 1 Signal LED, 1 Peak LED
Line In 1-4: 1 Signal LED, 1 Peak LED
Output: 2 Activated PRIORITY LED, 1 Connected REMOTE LED, 4 Selected LINE LED, 1 Signal LED, 1 Peak LED
Operating Temperature 0 to 40 °C degree (32 to 104 °F)
Operating Humidity 35% to 80% RH (no condensation)
Finish Panel: Aluminum, hair line, black; Case: Steel plate, black, paint
Dimension 420 (W) x 107.6 (H) x 350 (D) mm  (16.54" x 4.24" x 13.78")
Weight 5.7 kg (12.3 lbs)
Accessories Power cord (2m (5.65ft)) x1, Removable terminal plug (5 pins x 2, 3 pins x 1, 2 pins x 4); Rack mounting bracket x 2, Bracket mounting screws x 4, User manual x 1
Option Remote Control Panel : WP-700-AM
