N-SP80MS1

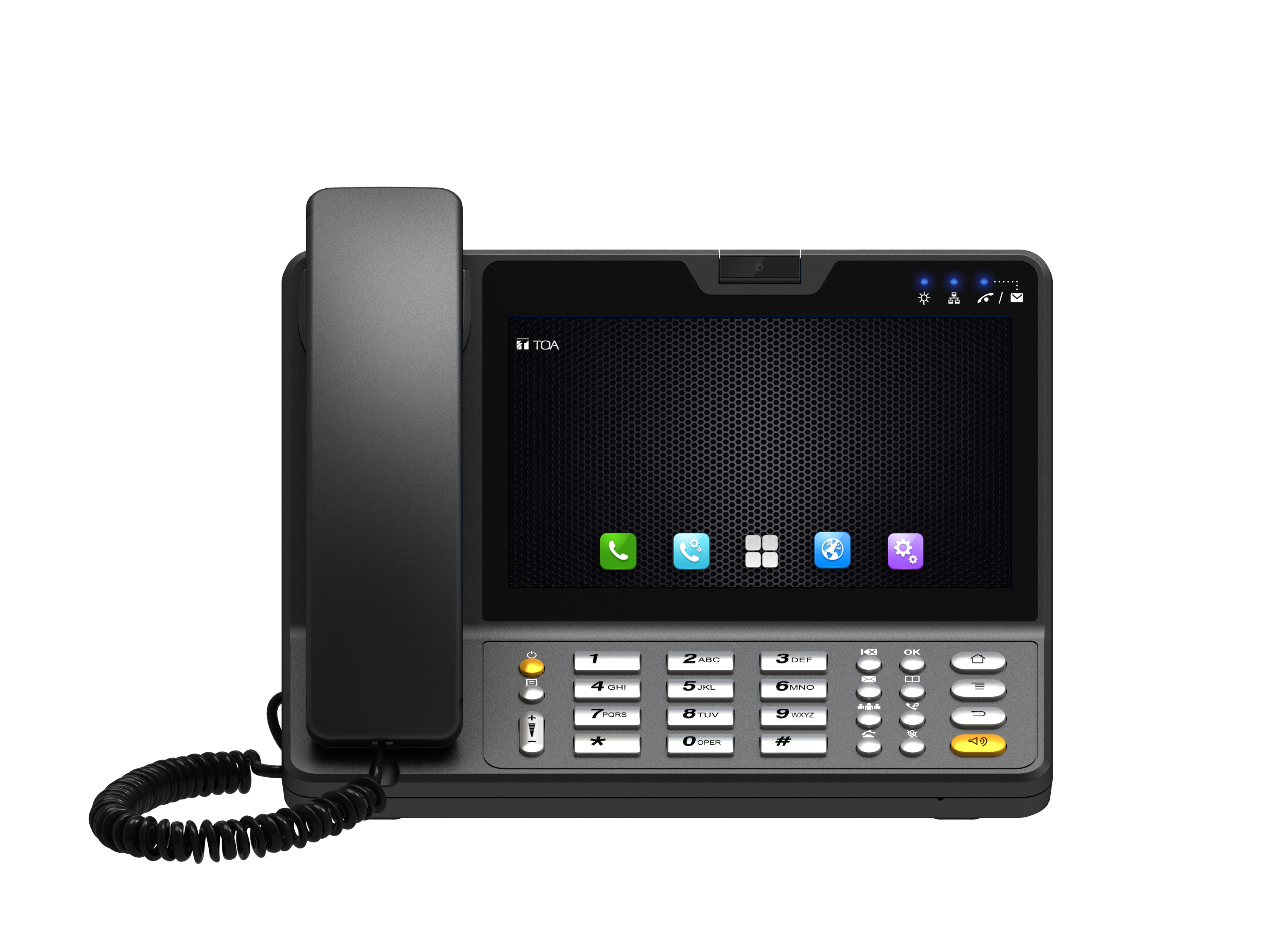

N-SP80MS1 SIP Multimedia Station

N-SP80MS1

The N-SP80 SIP Intercom System offers flexible audio and video communications using standard SIP and ONVIF protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without  a SIP server. TOA’s N-8000SG Q2 SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system. The N-SP80MS1 can communicate with master and door stations, and control door station contact closure outputs.





N-SP80 Softphone application.
Contact technicalsupport@toacanada.com for the Android APK file and manual.





certified

Sipelia Supported VoIP Hardware
Cisco Certified



Now Available; N-SP80WP Bracket

Product Features:

• Video monitoring on 7-inch 16x9 touch screen
• Intuitive operation with programmable dial keys
• Compatible with major video codecs
• Android-based for easy customization
• PoE or local power

         (Quick Installation Guide)



* Asterisk White Paper


   FreePBX SIP server configuration and setup

QTY: Add to Request for quote Request for quote

Specifications:

Phone Features Web support multi-language
Auto-answer
Volume control
Direct IP call without SIP proxy
Auto-Provision
DTMF modes: Inband, RFC2833, SIP INFO
Audio Features: VAD, CNG, AEC, G.165/G.168
Network Features 2x10/100Mbps Ethernet Port
1xPoE(IEEE803.2af)
Security: Password Protection, IP address filtering, SIP over TLS,
HTTPS encryption, user access log
Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP,
TCP, UDP, ICMP, DHCP, ARP
IP assignment: Static IP, DHCP, PPPoE
SIP Features SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711μ, G.722, G.723, G.729a/b, iLBC,
AMR-NB/WB, OPUS
Video codecs: H.263, H.264
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Others Android 4.2
Management by LCD Menu Configuration, WebUI
Download content from the specified server
Information receiving, storing, and rendering capabilities
Web browser
Contacts and Call records management
Support playing local or online video
Graphic Display 7 inch capacitive touch screen TFT LCD, 800x480 pixels , 16:9 wide
screen aspect ratio
Camera 2M pixels C-MOS camera, free rotation
Resolution up to 1080p
Video Features QCIF, QVGA, CIF, 4CIF, VGA
Video bitrate: 64kbps~2Mbps
PIP
Full Screen
local video ON/OFF control
Hands-Free Microphone and Speaker built-in
Hand-set Connected with a carl-cord
External Interface IEEE802.11 b/g/n, USB 2.0, 3.5mm headset jack
Power Source DC 12V by AC adaptor, PoE
Power Consumption less than 12W
Installation Desktop
Operating Temperature 0 °C 40 °C (32 °F- 104 °F)
Finish ABS
Dimension 240 (H) x 213 (W) x 120( D)mm (9.44" x 8.39" x 4.72")
