The N-SP80 SIP Intercom System offers flexible audio and video communications using standard SIP and ONVIF protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without  a SIP server. TOA’s N-8000SG Q2 SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system.

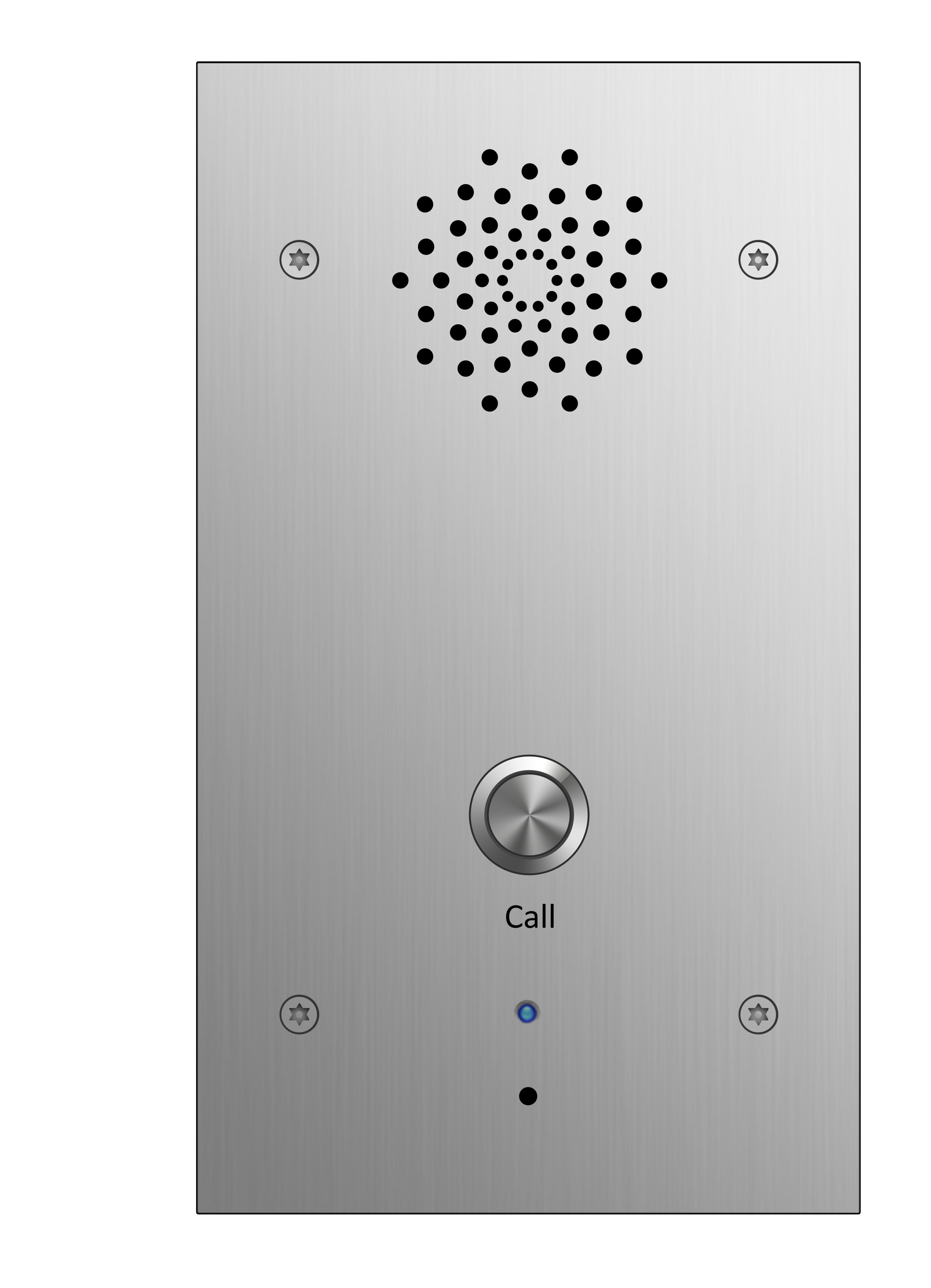

The N-SP80AS1 Q    SIP Audio Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch and two control relay outputs.



N-SP80 Softphone application.
Contact technicalsupport@toacanada.com for the Android APK file and manual.

Sipelia Supported VoIP Hardware
Cisco Certified

Product Features:

• Compatible with major audio codecs
• High-quality audio transmission
• Built-in AEC (Acoustic Echo Canceller)
• Full-duplex communication
• Two control relay outputs
• IP54 grade water/dust proof construction
• Mounts in 4-gang electrical box  (The YC-400 backbox,  YC-811 rain shield and  YC-832HSW heated backbox  is available from TOA)

 Important!

To avoid the N-SP80AS1 from being bricked, ensure you install the firmware incrementally to the product. That means, verify what the current software is installed and how many new version of the software are available. Then install the new software in order of oldest to newest. Check our software page for files. Contact TOA technicalsupport@toacanada.com if you have further questions.

         (Quick Installation Guide)


   FreePBX SIP server configuration and setup

              * Asterisk White Paper

How to connect a contact out from the SIP door stations to create a trigger such as a strobe or a bell to ring.
