The N-SP80 SIP Intercom System offers flexible audio and video communications using standard SIP and ONVIF protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also available for easy system configuration without  a SIP server. TOA’s N-8000SG Q2 SIP gateway software is fully compatible with TOA’s N-8000 IP intercom system.

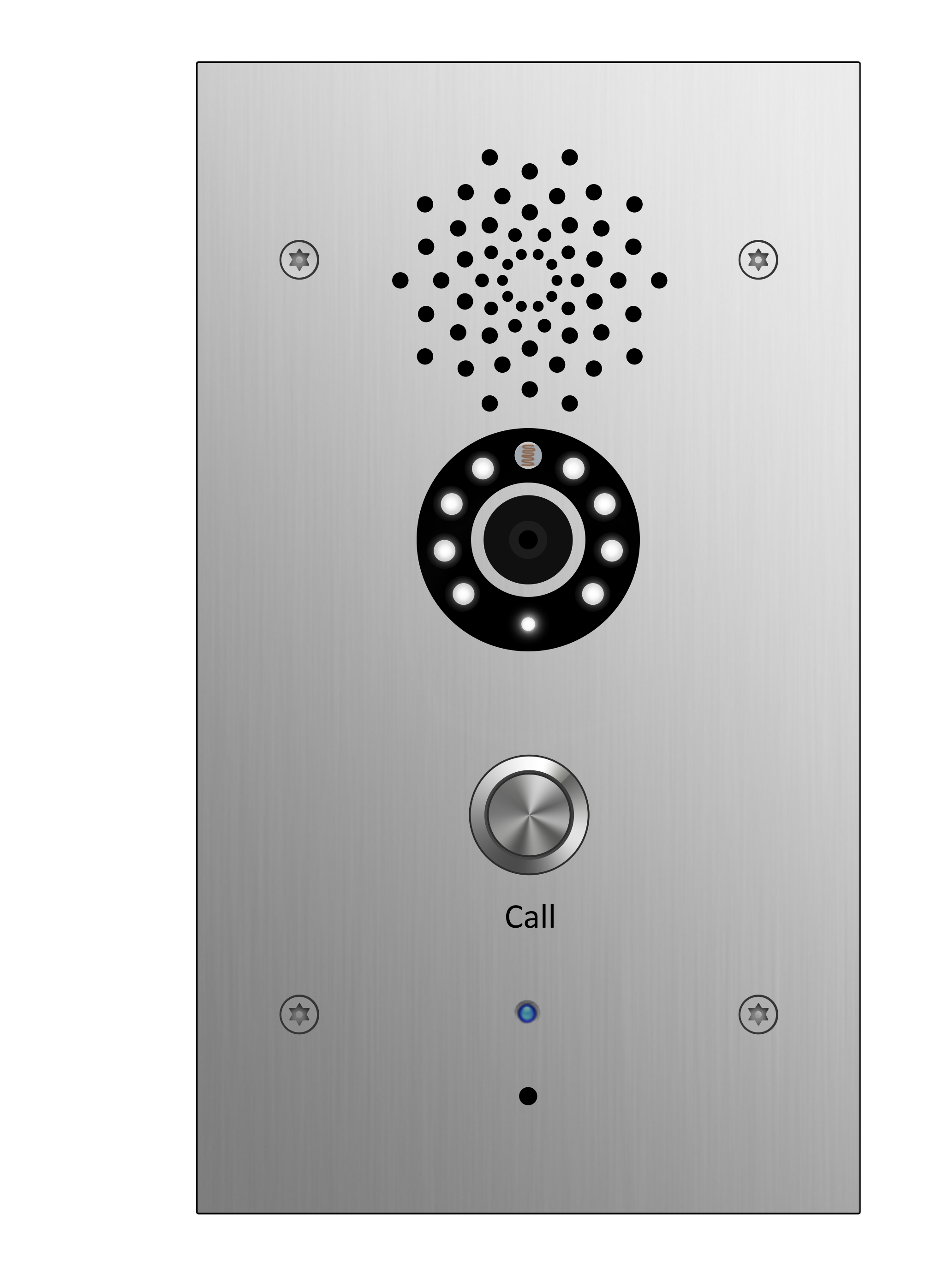

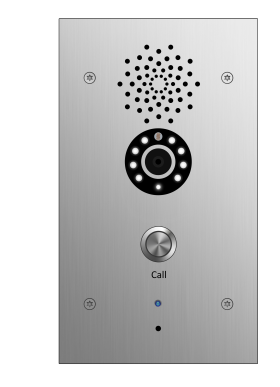

The N-SP80VS1 Q  SIP Video Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch, a night-view camera and two control relay outputs.



N-SP80 Softphone application.
Contact technicalsupport@toacanada.com for the Android APK file and manual.

Sipelia Supported VoIP Hardware
Cisco Certified

Product Features:

• Compatible with major audio codecs
• Built-in AEC (Acoustic Echo Canceller) enables full-duplex communication
• Photo Sensitive Sensor detects brightness
• IR LEDs help to capture video even in dark environments
• Resolution up to 1080p
• Two control relay outputs
• IP54 grade water/dust proof construction
• Mounts in 4-gang electrical box  (The YC-400 backbox,  YC-811 rain shield and  YC-832HSW heated backbox  is available from TOA)

       (Quick Installation Guide)

  FreePBX SIP server configuration and setup

        * Asterisk White Paper

How to connect a contact out from the SIP door stations to create a trigger such as a strobe or a bell to ring.
