S4.10-L-AM RM3QU

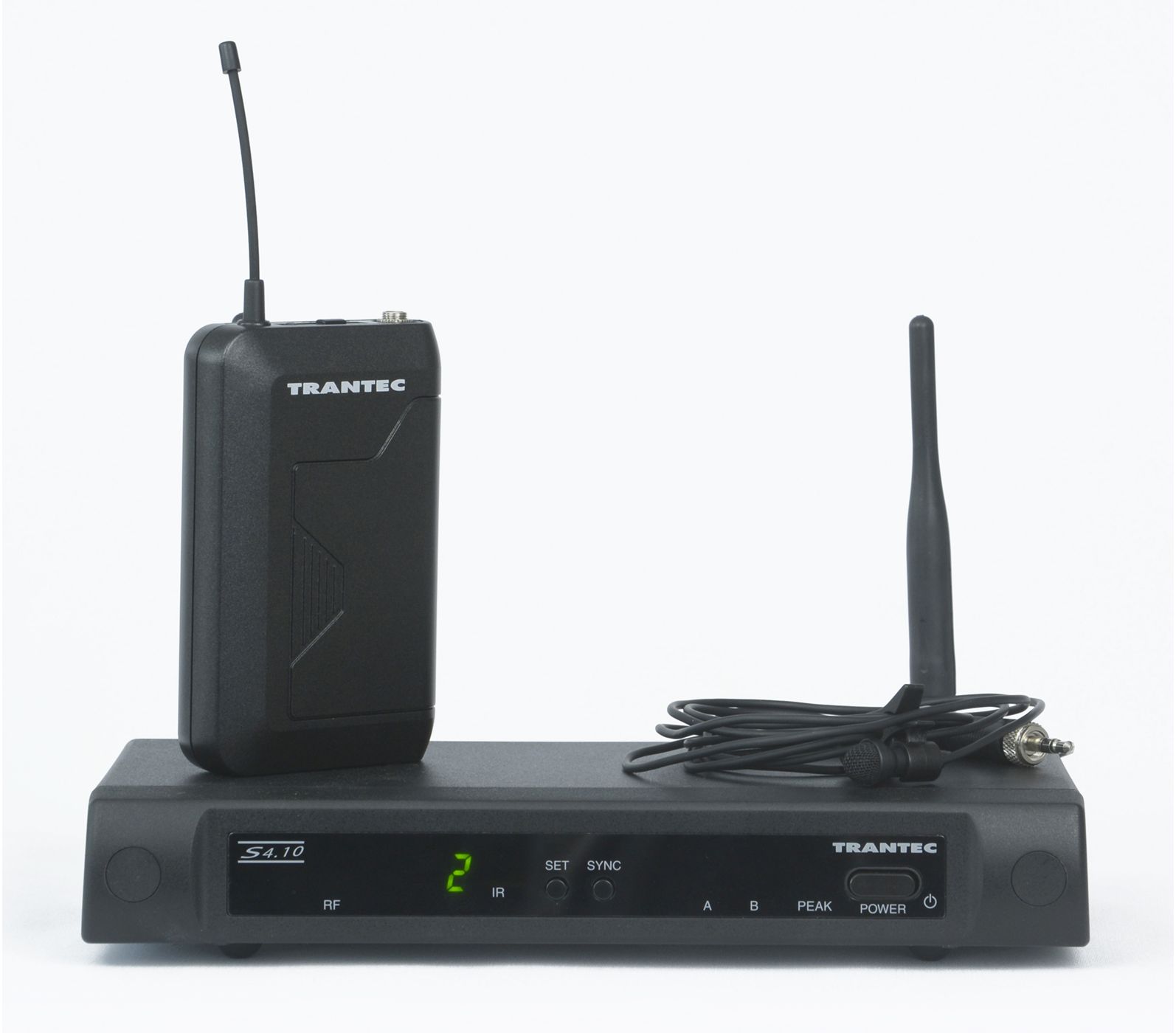

S4.10 Series UHF Lavaliere Wireless Microphone Kit

S4.10-L-AM RM3QU

The S4.10 contains Up to 16 channels which allows for multiple mic configurations with simple plug and play.
S4.10 offers the the full systems including handheld and beltpack setups.

The IR Sync - Infrared auto channel setup is a great feature, as it takes all the guess work out of selecting the channel for your microphone

It comes with a Numerical LED display & Indication of transmitter’s battery life along with an adjustable output level.

The S4.10 has an approximate 100m operating range (line of sight)

 *Includes Lavalier Mic



QTY: Add to Request for quote Request for quote

Specification

S4.10-L-AM RM3QU - Kit



Product Composition Wireless transmitter ...1, Receiver ...1, Lavalier microphone ...1
Frequency Range 506 - 538 MHz (*1), UHF   (M band)
Channel Selectable Up to 16 channels (depending on region)
Tunable Frequencies 25kHz Steps
Function IR sync, Channel scan, Battery life information





Specification

S4.10-LTX-AMWM3QU - Transmitter


Microphone Element Back electret condenser; 0mni-directional
RF Carrier Power 10mW
Audio Frequency Response 50 - 15000 Hz
Audio input Level -6dBV (maximum), mic gain 0dB
Modulation System PLL synthesizer
Battery Life Approx. 10 hours
Power Supply 11-18 VDC 300 mA
Dimensions 62(W) x 100(H) x 25(D) mm (with clip)
Weight approx. 85 g (with battery)
Accessory Includes Lavalier Mic





S4.10-RXA-AMRM3QU - Receiver

* 0 dB = 0.775 V

Diversity Reception Antenna Diversity
Sensitivity 10uV at 45 dBA S/N
Squelch Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response 50 - 15000Hz
Audio Output Level Balanced (XLR socket) : -16 dBu
Unbalanced (1/4" jack socket) : 10 dBu
Power Supply 11-18 VDC 300 mA
Dimensions 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
Weight 480g
