YC-832HSW AM

YC-832HSW AM Surface Mount Backbox for SIP Station

YC-832HSW AM

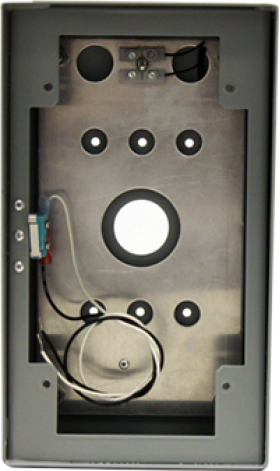

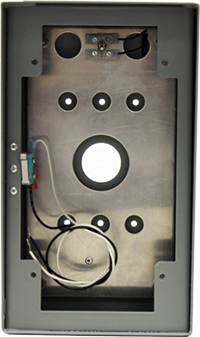

The YC-832HSW AM is a surface mount backbox for the N-SP80AS1/VS1 intercom door stations of the N-SP80 SIP intercom series. It is equipped with two heaters for installations in cold environments (up to - 45°C), a thermostat* that turns the heaters on and off, and a tamper switch to be connected to a control input of any N-SP80 compatible device for triggering a tamper notification call. The YC-832HSW AM requires 24V AC or DC power adapter (not included).

 *The heaters will turn on when the temperature drops below 4°C (40°F) ± 4°C and turn off when the temperature rises above 15°C (60°F) ± 4°C.





QTY: Add to Request for quote Request for quote

This product is electronically distributed.

Specifications

Heater

Number of Units

2 X 10W


Power Source:

Requires 24V AC or DC power adapter
(not included).


Power Consumption:

 Max. 20W
  Wiring Terminal:    2 pin screw terminal
 Thermostat

Series

½” Disc
Type Automatic reset
Function Open on rise (Normally Closed)
Heater Open Temperature 4°C (40°F) ± 4°C
Heater Close Temperature 15°C (60°F) ± 4°C
Tamper Switch NO/NC switch, flying leads with no termination
Operating Temperature

-45°C to + 50°C (-40°F to +122°F)
Finish Steel, Powder Coat Finish Gray (RAL 9006 or equivalent)
Dimensions 4.89”(w) x 8.45”(h) x 3.95”(d)     (124 x 215 x 100mm)
Weight 2.8 lbs. (1.3kg)
