BG-2480D-AM

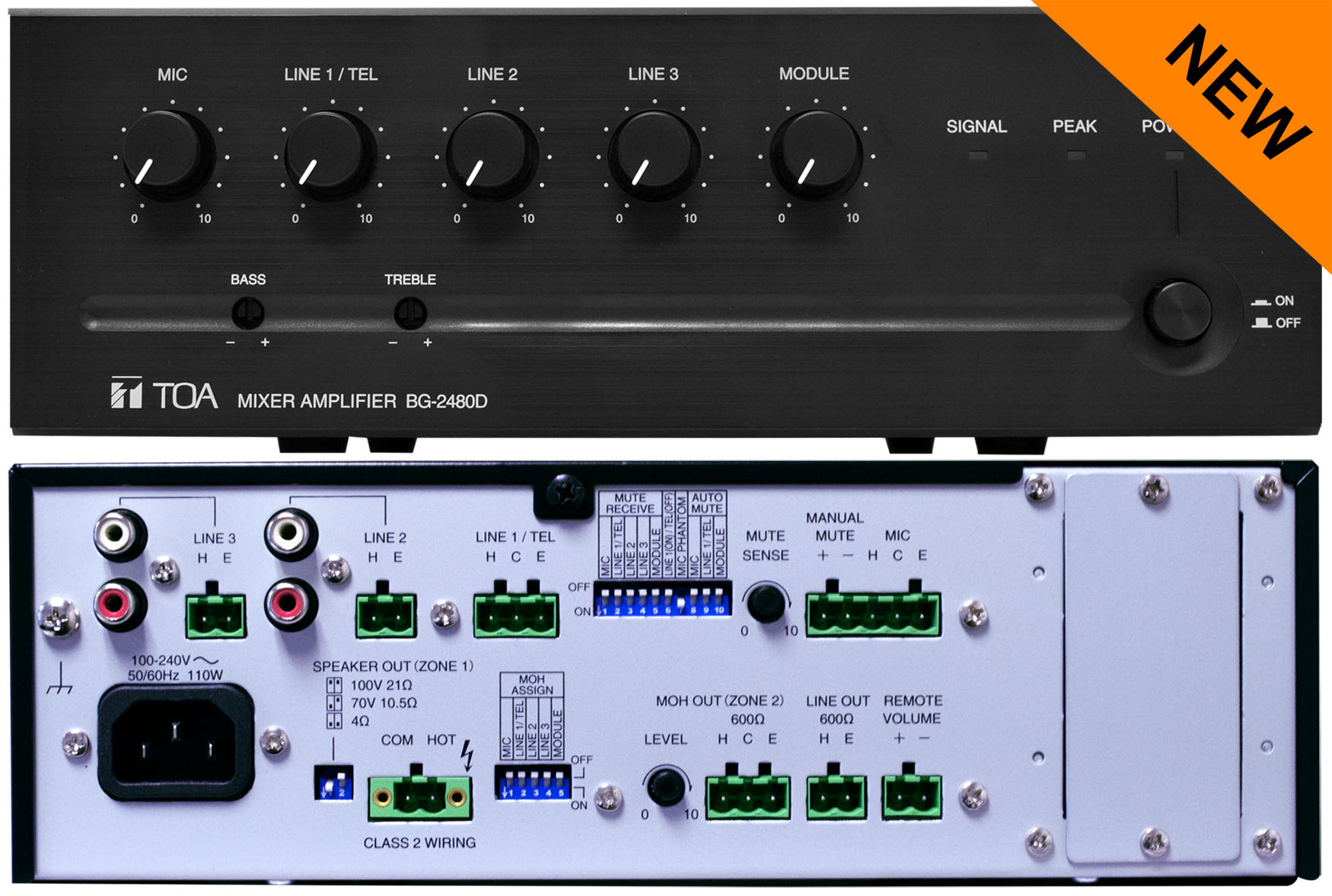

BG-2480D-AM Mixer Amplifier

BG-2480D-AM

The BG-2480D is a powerful 480W 5 input mixer amplifier; designed for background music and general announcements. Its lightweight and compact case and high efficiency amplifier output make it a desirable addition to a new or upgraded system. The Amplifier output is 480W @ 4ohm. 70V and 100V. RCA jacks provide for Line 2 and 3 inputs for quick connection. The BG-2480 is an enhances the already dominant BG series of amplifiers.



QTY: Add to Request for quote Request for quote

Specifications:

Power Source 120 V AC, 60 Hz
Rated Output 480 W
Power Consumption 600 W (rated output), 110 W (based on UL 60065 standards)
Frequency Response 50 Hz – 20k Hz
Total Harmonic Distortion 0.8% or less, at 1 kHz, 1/3 rated output, LPF 20KHz
Input Mic: –60dB*, 600Ω, electronically balanced, removable terminal block
Line 1: –10 dB*/TEL: –20 dB*
Line 1/TEL: selectable, 10kΩ, electronically balanced, removable terminal block
Line 2, 3: –10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack
Module
Output Speaker: Lo-z(4Ω), 70V(10.5Ω),100V(21Ω), balanced, removable terminal block
MOH: 0 dB*, 600 Ω, balanced, removable terminal block
Line: 0 dB*, 600 Ω, unbalanced, removable terminal block
Output Regulation 2 dB or less, no load to full load (1k Hz)
Phantom Power On/Off switch for Mic,+24V DC
S/N Ratio Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 80 dB or more (A-weighted, Tone Controls: Centered)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10k Hz
Muting Manual mute/Automatic mute
Control Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control,
Module: gain control, Bass tone control, Treble tone control,MOH out gain control,
Mute control (Manual mute), Remote volume control, Mute sense control, Line
1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic,
Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module),
MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch
Indicator Power LED, Signal level LED, Peak LED
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Finish Panel: ABS resin, black
Case: Steel plate, black, paint
Dimensions 264 (W) × 94.3 (H) × 267.3 (D) mm (10.39" × 3.71" × 10.52")
Weight 3.5 kg (7.72 lb)
Accessory Volume control cover: YA-920 × 5, Removable terminal plug (2 pins) × 4, Removable terminal plug (3 pins) × 2, Removable terminal plug (screw 2 pins) × 1, Removable terminal plug (5 pins) × 1
Option Rack mounting brackets: MB-1000

* 0dB = 1V
