WD-5800 Antenna Distributor

WD-5800

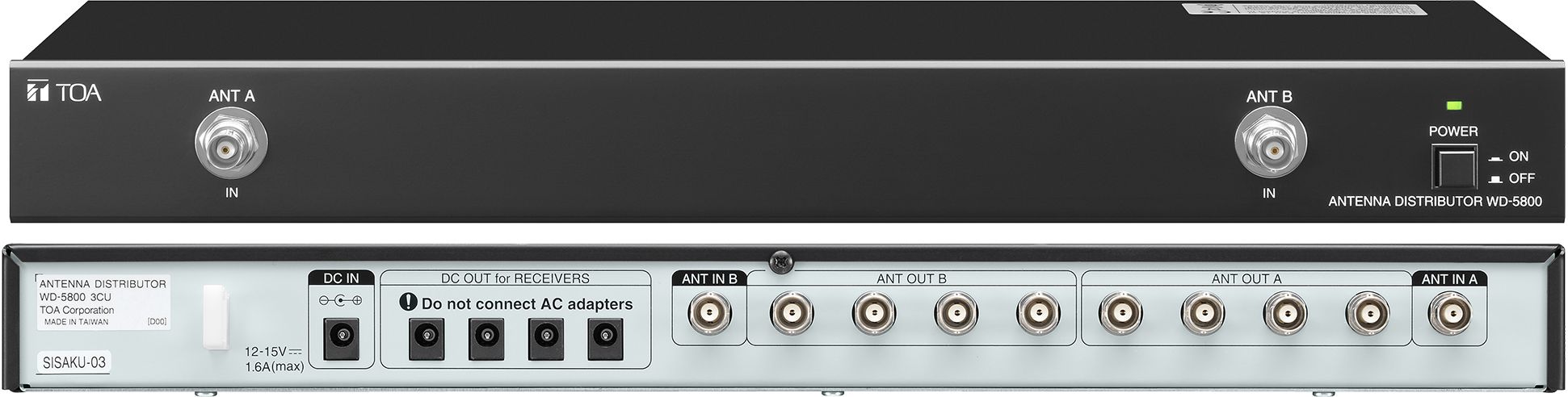

The TOA Wireless antenna distributor WD-5800 is designed to be used in conjunction with VHF/UHFband system. It comes with two distribution channels, in which two input signals are mixed and distributed to four outputs. The WD-5800 also has four DC power distribution outputs.







QTY: Add to Request for quote Request for quote
Specification
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 25 W or less
Current Consumption 1.6 A (12 - 15 V DC)
Frequency Range VHF/UHF
Antenna Input 2 inputs per distribution channel (front × 1, rear × 1), 75 Ω, BNC (phantom power for antenna)
Antenna Output 4 outputs per distribution channel, 75 Ω, BNC
DC Power Supply 4 outputs (each output: 12 V DC/250 mA)
(Output voltage of this unit depends on that of AC adapters.)
Indicator Power lamp
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Panel: Aluminum, black, paint
Case: Steel, black, paint
Dimensions 420 (W) x 44 (H) x 214 (D) mm (16.54"x 1.73" x 8.43")
Weight 2 kg (4.41 lb)
Accessory AC adapter (*1) …1, Power cord (2 m (6.56 ft)) (*1) …1, DC cable …4, Rubber foot …4
Option Rack mounting bracket: MB-15B
(*1) Not supplied with the WD-5800. For the usable power supply cord and AC adapter, contact your nearest TOA dealer.
