FB-3862CU

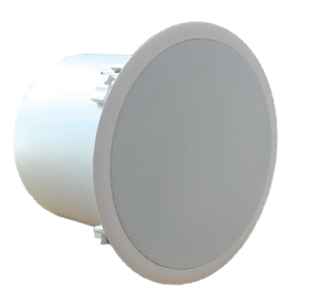

FB-3862CU Ceiling Subwoofer

FB-3862CU

The FB-3862CU is a high-performance flush-mount ceiling subwoofer assembly for low frequency enhancement of distributed loudspeaker systems. A 60W 70/100V transformer is included, and the bandpass design eliminates the need for a bi-amplified system. The 8-Ohm bypass allows for applications using electronic crossovers and dedicated low impedance power amplifiers.
HY-BC2W white enclosure now available.





QTY: Add to Request for quote Request for quote

 Specifications:

Enclosure Bandpass
Rated Input 60W (70/100V)
Power Handling Capacity

100W RMS 200W Peak (low impedance)
Impedance 70V line- 60W/30W/15W/7.5W/3.8W/1.9W with 8 Ω bypass
Sensitivity 88dB 1W/1m
Frequency Response 47-200 Hz (-10dB)
Speaker Component 8” driver with oiled paper cone and foam surround
Certification UL2043/UL1480A. Baffle meets UL 94-V0 flammability rating. RoHS and CE compliant
Mounting Hole 350mm diameter (13.8")
Input Terminal Phoenix-type with paralleloutputs (max 12AWG stranded cable)
Recommended Cable Max 12AWG stranded unshielded twisted pair (jacket per code)
Finish White
Dimensions 383 mm diameter x 326.5 mm height (15.08" x 12.85")
Weight 6.45 kg (14.22 lbs.)
Included Accessories Steel support ring (C-ring) qty. 2, steel support rails qty.2, speaker hole template qty.2,   operation manual qty. 1
Option Accessories Support and safety cables (load rated chain or load rated aircraft cable)
HY-BC2W white enclosure

 (*1) 0 dB = 1 V
