S2.4HHX

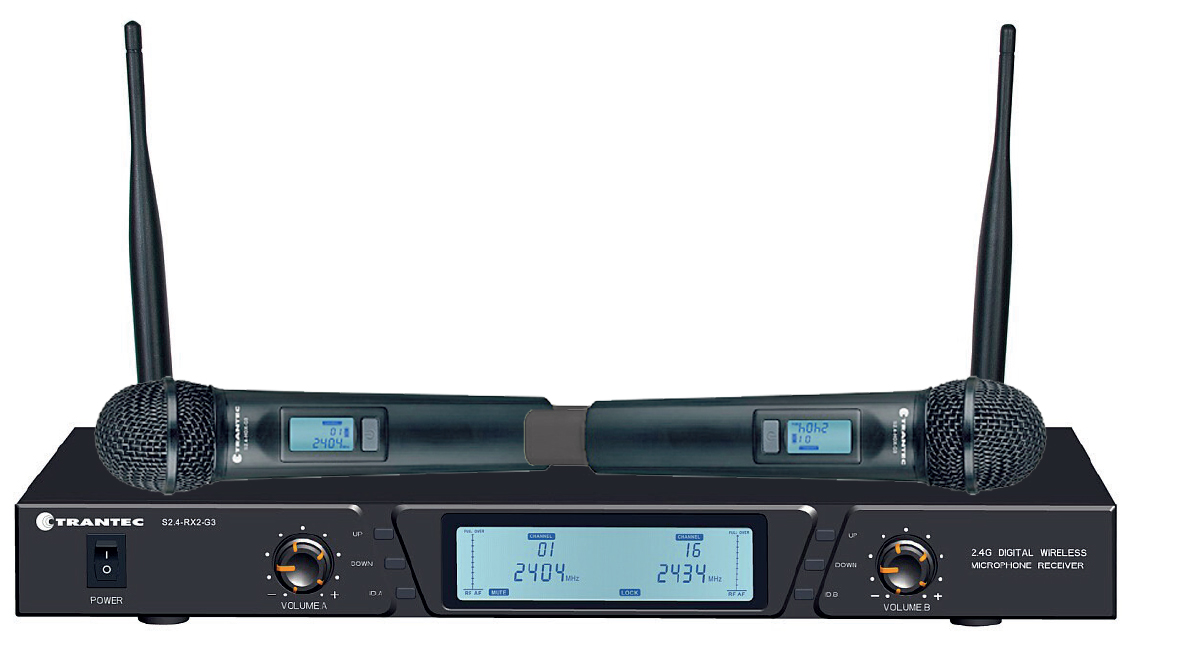

Digital Wireless Dual Microphone System with Two Handheld Transmitters

S2.4HHX

Receiver-RX2;

S2.4 Series 16 Channel Digital Wireless System, 2 Ch. Dual Receiver with LCD. Up to 2 simultaneous channels, Can transmit up to a distance of 30m, This Dual receiver system comes with two handheld microphone.

Handheld Transmitter-HDX;

Simple programming of transmitter with built-in infra-red data link and frequency and Power lock facility.
Clear and intuitive LCD display with professional metal enclosure, and battery life of approx 5 hours.





QTY: Add to Request for quote Request for quote

Specification

Dual Receiver


Carrier Frequency    2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Outputs

Unit has a Mic A and B XLR -38 db out,
As well as a line level A/B Mix ¼” out.
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply   12VDC 1.0A
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Antennas Dual receiver with removable antennas
Weight 1.4 kg (3.1 lb.)
Dimensions W 16.75"  x  H 1.65"  x  D  5.25"


NOTE: Dual Receiver: Simultaneous Microphone Thresholds
TOA recommends a maximum of 6 transmitters operating with a maximum of 3 dual receivers for best performance.

Handheld Transmitter

RF Carrier Power 10mW
Modulation System GFSK
Ultraharmonics <20dB
Power Supply 2 x AA battery
Battery Life Approx. 5 hours
Weight 370 g (0.81 lb.)
Dimensions W 2"  x  H 9.6"

*rack mount kit included
