S2.4BBX

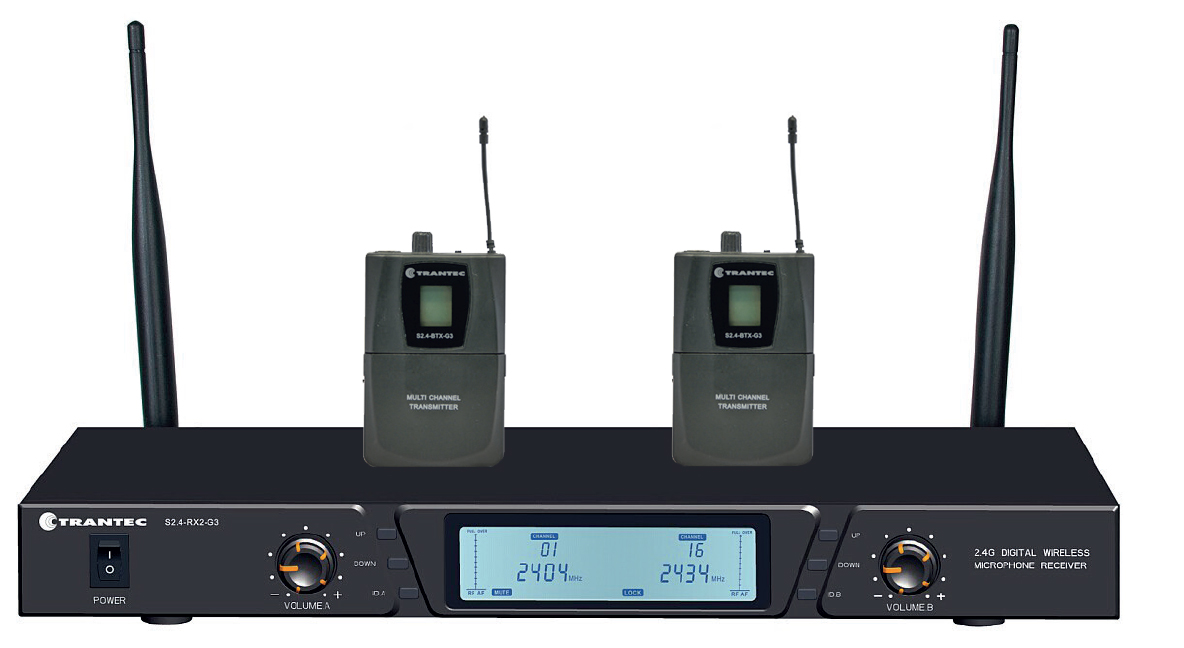

S2.4BBX Digital Wireless Dual Microphone System with Two Beltpack Transmitters

S2.4BBX

Receiver-RX2;

S2.4 Series 16 Channel Digital Wireless System, 2 Ch. Dual Receiver with LCD. Up to 2 simultaneous channels, Can transmit up to a distance of 30m, This dual receiver system comes with two  beltpack transmitter.

Beltpack Transmitter - BTX;

Credit card sized beltpack with Simple programming of transmitter with built in infrared data link.
Frequency and power lock facility. Clear and intuitive LCD display Detachable antenna and professional metal enclosure.
*S2.4-LMO - Lavaliere Microphone Included (x2)



QTY: Add to Request for quote Request for quote

Specification

Dual Receiver


Carrier Frequency    2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Outputs Unit has a Mic A and B XLR -38 db out,
As well as a line level A/B Mix ¼” out.
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply   12VDC 1.0A
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Antennas Dual receiver with removable antennas
Weight 1.4 kg (3.1 lb.)
Dimensions W 16.75"  x  H 1.65"  x  D  5.25"


 NOTE: Dual Receiver: Simultaneous Microphone Thresholds
TOA recommends a maximum of 6 transmitters operating with a maximum of 3 dual receivers for best performance.

Beltpack Transmitter

RF Carrier Power 10mW
Modulation System GFSK
Ultraharmonics <20dB
Power Supply 2 x AA battery
Battery Life Approx. 5 hours
Weight 250 g (0.55 lb.)
Dimensions W 2.5" x  H 3.7"  x  D 1"

*S2.4-LMO - Lavaliere Microphone Included (x2)

*rack mount kit included
