S2.4HX

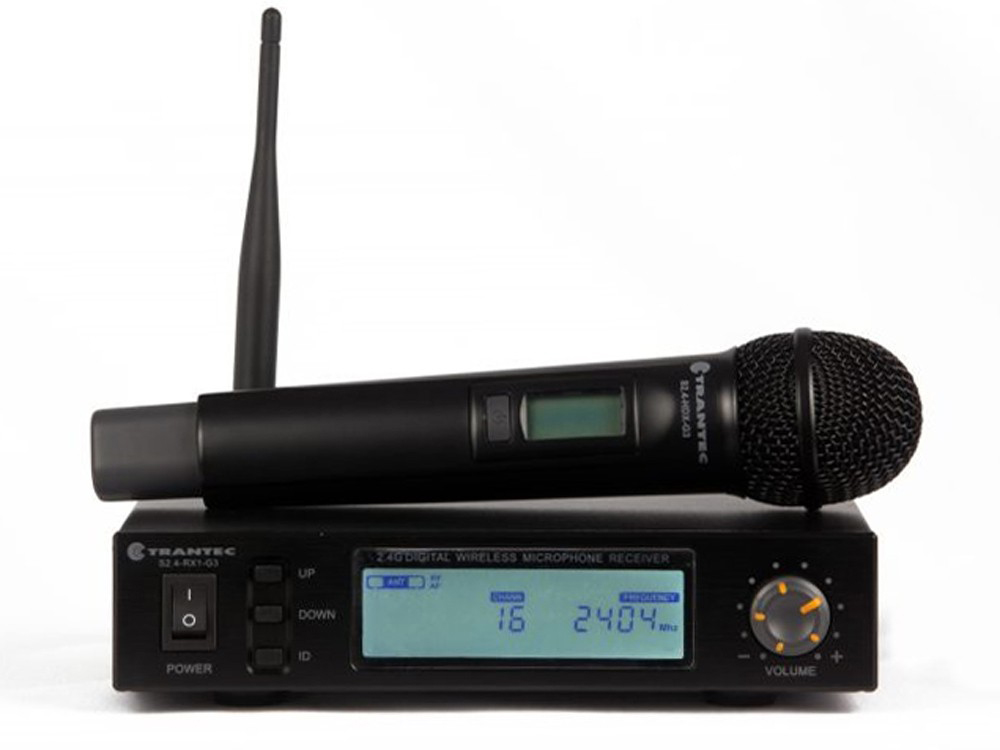

S2.4HX Digital Wireless Microphone System with Handheld transmitter

S2.4HX

Receiver-RX1;

S2.4 Series 16 Channel Digital Wireless System, 1 Ch. Dual Receiver with LCD (Half size). Transmission up to a distance of 30m, IR sync for easy set-up with No RF noise. This single receiver system comes with one Handheld Transmitter.

Handheld Transmitter-HDX;

Simple programming of transmitter with built-in infra-red data link and frequency and Power lock facility.
Clear and intuitive LCD display with professional metal enclosure, and battery life of approx 5 hours.



QTY: Add to Request for quote Request for quote

Specification

Single Receiver


Carrier Frequency    2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Output XLR Mic level out and a ¼” MIX OUT Line Level
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply   12VDC  0.5a or 1.0a
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Weight 1.6 kg (3.5 lb.)
Dimensions W 8.38"  x  H 1.65"  x  D 5.25"


 NOTE: Dual Receiver: Simultaneous Microphone Thresholds
TOA recommends a maximum of 6 transmitters operating with a maximum of 3 dual receivers for best performance.

Handheld Transmitter

RF Carrier Power 10mW
Modulation System GFSK
Ultraharmonics <20dB
Power Supply 2 x AA battery
Battery Life Approx. 5 hours
Weight 370 g (0.81 lb.)
Dimensions W 2"  x  H 9.6"

*rack mount kit included
