S2.4-RX2

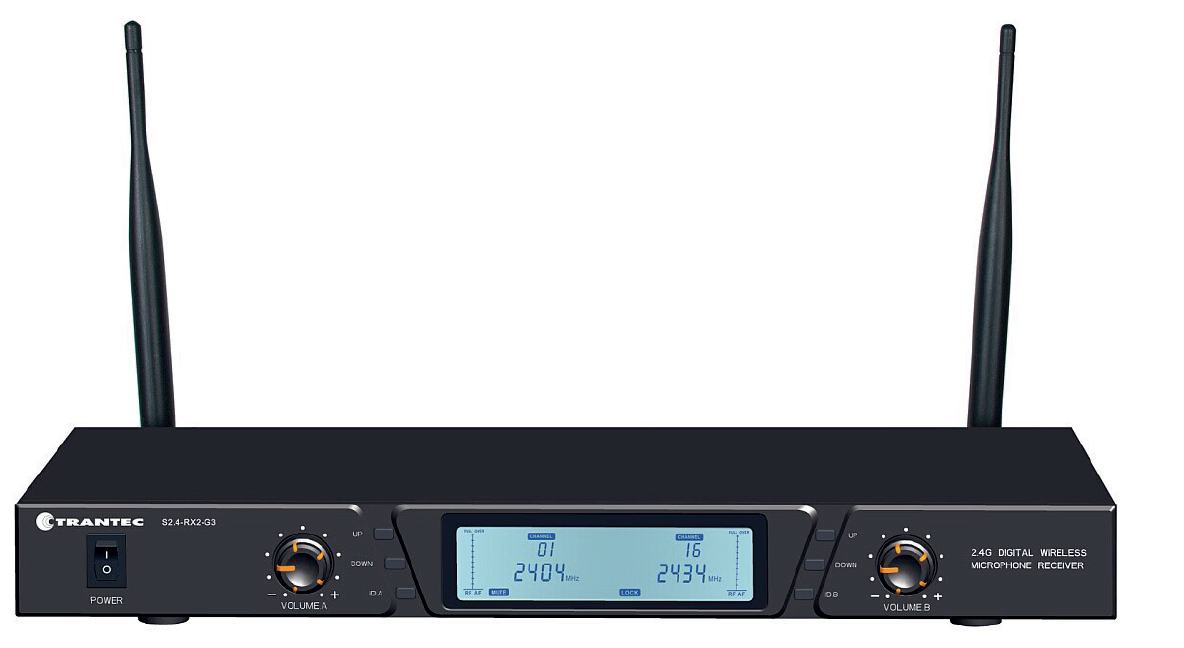

S2.4-RX2 Digital Wireless Dual Receiver

S2.4-RX2

S2.4 Series 16 Channel Digital Wireless System, 2 Ch. Dual Receiver with LCD. Up to 2 simultaneous channels, Can transmit up to a distance of 30m, Dual receiver system comes with both a handheld microphone and a beltpack transmitter.



QTY: Add to Request for quote Request for quote

Specification


Carrier Frequency   2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Outputs Unit has a Mic A and B XLR -38 db out,
As well as a line level A/B Mix ¼” out.
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply   12VDC 1.0A
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Antennas Dual receiver with removable antennas
Weight 1.4 kg (3.1 lb.)
Dimensions W 16.75"  x  H 1.65" x  D  5.25"
